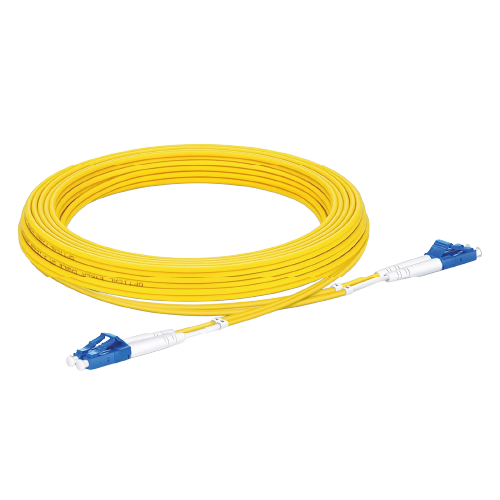

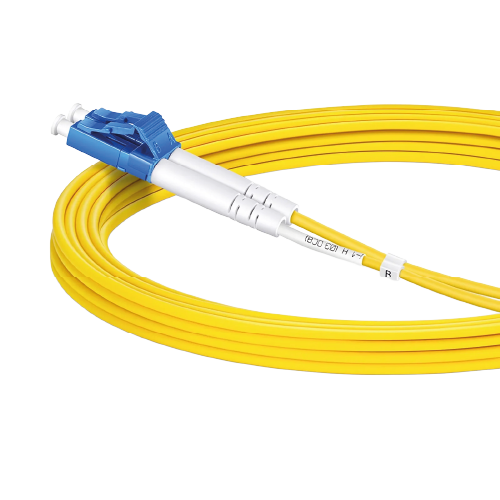

Single Mode OS2 LC/UPC to LC/UPC Duplex Fiber Optic Patch Cord (3m, LSZH, Yellow)

Product Overview

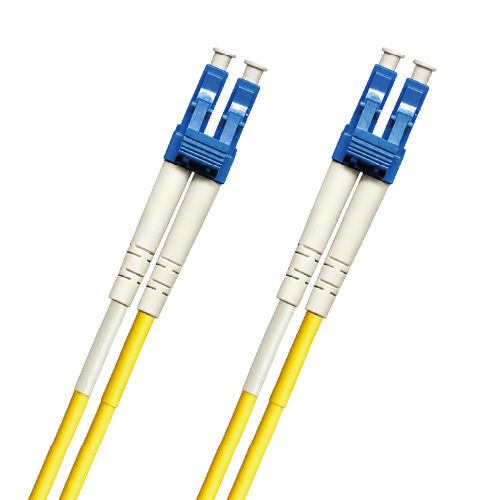

The LPF13L10L1027L3M Duplex Fiber Optic Patch Cord is an enterprise-grade single mode optical jumper designed for high-speed telecommunications, enterprise data centers, and mission-critical fiber backbone links. Measuring 3 meters (approx. 9.84 feet) in length, this cable is factory-terminated on both ends with compact LC Duplex connectors featuring ultra physical contact (UPC) ceramic ferrules, ensuring ultra-low insertion loss (≤ 0.3dB) and a high return loss (≤50dB) for superior optical signal stability.

Built with premium single mode OS2 (9/125 $\mu$m) glass optical fibers, the patch cord is jacketed in a low smoke zero halogen (LSZH) flame-retardant compound finished in standard safety yellow. In the event of extreme heat or fire, the LSZH outer sheath emits minimal smoke and non-toxic fumes, making it compliant with strict building codes, indoor commercial risers, and data server rooms. It is engineered for interconnecting high-density fiber patch panels, optical distribution frames (ODF), SFP/SFP+ optical transceivers, network switches, and fiber-to-the-building (FTTB) demarcation terminals.

✅ Key Features

• Single Mode OS2 (9/125 µm) Performance: Optimized for long-reach 1310 nm and 1550 nm wavelengths, supporting 1G, 10G, 25G, 40G, and 100G optical networking.

• Precision LC/UPC Duplex Polish: Ceramic ferrules polished to UPC standards ensure high optical return loss (≤50dB) and low attenuation (≤0.3dB).

• Low Smoke Zero Halogen (LSZH) Jacket: Halogen-free, flame-retardant yellow sheath minimizes smoke emission and eliminates toxic acid gas release during combustion.

• 3-Meter Versatile Length (9.84 ft): Ideal for cabinet cross-connects, server-to-switch interconnects, and optical distribution panel patching.

• High-Density LC Form Factor: Compact LC connectors double port density compared to legacy SC or ST interfaces, ideal for blade switches and SFP/SFP+ cages.

• Removable Duplex Clip: Permits individual polarity reversal (A/B rollover) without tools when cross-connecting transmit (Tx) and receive (Rx) lines.

• Factory Tested & Certified: 100% optically inspected for end-face geometry, insertion loss, and return loss according to Telcordia GR-326-CORE standards.

📸 Compatible Devices

• 1G/10G/25G SFP, SFP+, and SFP28 Optical Transceiver Modules (1310nm/1550nm Single Mode)

• Enterprise Fiber Switches, Core Routers, and Media Converters

• High-Density Optical Distribution Frames (ODF) and 19-Inch Rackmount Fiber Patch Panels

• Network Video Recorders (NVRs) and Servers with Optical PCIe Interface Cards

• Industrial Ethernet Fiber Switches used in long-distance CCTV perimeter systems
