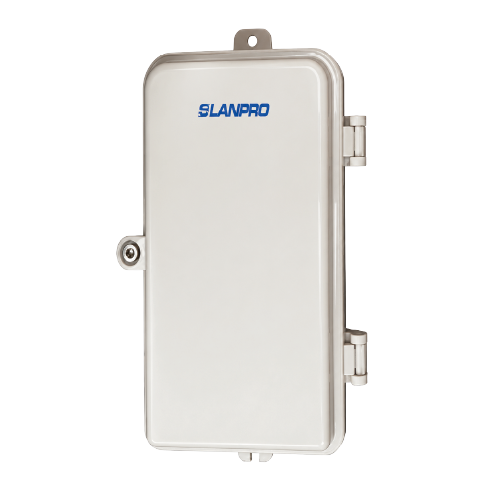

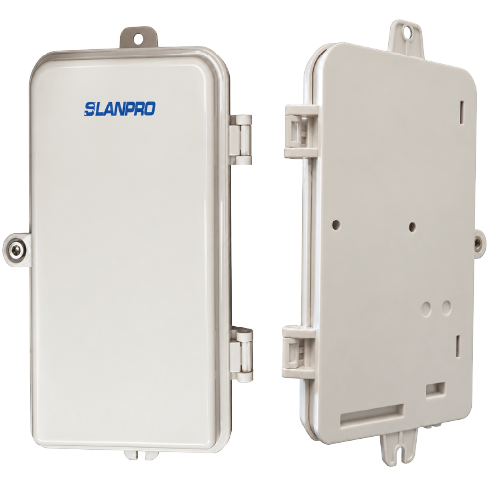

Compact ABS Wall-Mount Fiber Optic LIU / FTTH Terminal Box (Unloaded, 4-Port SC/LC Duplex)

Product Overview

The LPF205GOY00 Fiber Optic LIU (Light Interface Unit) Terminal Box is an architectural, compact wall-mount optical termination enclosure designed for FTTH (Fiber-to-the-Home), FTTB (Fiber-to-the-Building), and indoor telecommunication customer premises demarcation. Manufactured without pre-installed couplers (unloaded configuration), this modular terminal box allows network integrators the flexibility to populate it with up to 4× SC Simplex / LC Duplex optical adapters (supporting up to 8 fiber cores when utilizing LC Duplex).

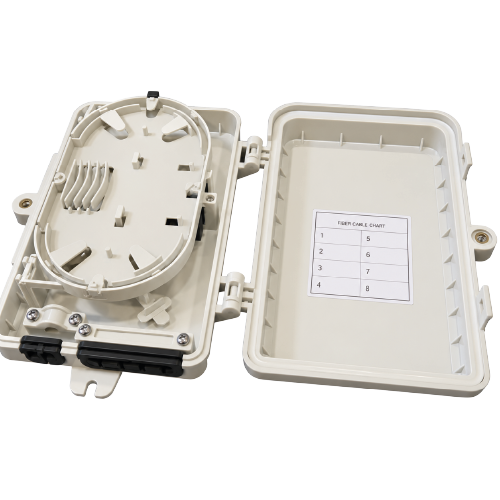

Molded from high-impact, flame-retardant engineering ABS plastic in an unobtrusive oyster white finish, the LPF205GOY00 features an integrated internal routing framework designed to enforce a minimum bend radius of >30mm. It incorporates a dedicated internal splice organizer with slots for fusion splice protection sleeves, cable tie-down anchors, and fiber slack storage loops to eliminate micro-bending losses. Equipped with rubberized entry grommets that protect against dust and mechanical strain, it is ideal for residential subscriber drops, commercial office floor distributors, CCTV camera fiber aggregation points, and small-to-medium enterprise structured cabling demarcations.

✅ Key Features

• 4-Port Modular Adapter Capacity: Accommodates up to 4× standard SC Simplex or LC Duplex adapters (Single Mode or Multimode, up to 8 cores via LC).

• Unloaded Architectural Flexibility: Allows customized field deployment with UPC or APC optical adapters as dictated by project specifications.

• Integrated Fiber Management & Splice Organizer: Built-in splice tray bridges incoming outdoor/riser cables to pigtails while safeguarding fusion sleeves.

• Bend Radius Protection (>30mm): Curved internal cable routing spools maintain optical geometry and prevent signal attenuation from sharp bends.

• High-Impact ABS Construction: Durable, flame-retardant polymer enclosure resists physical impacts, indoor moisture, and yellowing over time.

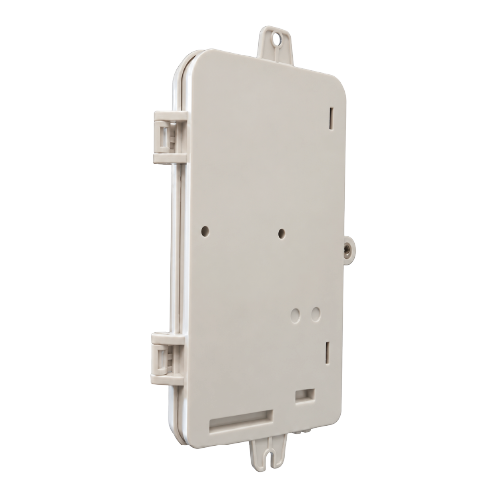

• Compact Wall-Mount Profile: Low-profile footprint mounts flush onto drywall, wood, or brick surfaces in customer premises and utility closets.

• Cable Strain Relief & Sealing: Integrated rubber cable entry grommets and internal mechanical cable clamps prevent pull-out damage.

📸 Compatible Devices

• SC Simplex and LC Duplex Flanged Optical Adapters (Single Mode UPC/APC, Multimode OM3/OM4)

• Fiber Optic Fusion Splice Protection Sleeves (40 mm and 60 mm)

• Optical Pigtails (SC/UPC, SC/APC, LC/UPC 0.9 mm buffered fiber)

• FTTH Drop Cables (Flat 2.0 × 3.0 mm) and Indoor Distribution Tight-Buffered Cables

• Optical Network Terminals (ONTs), Media Converters, and Industrial Ethernet Fiber Switches
