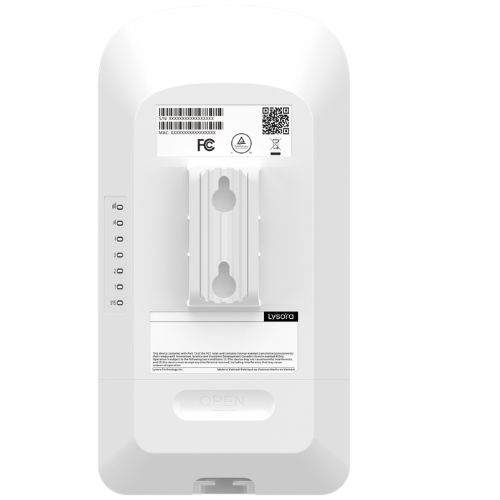

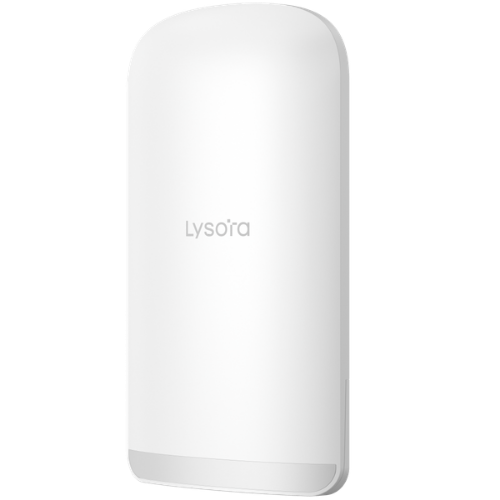

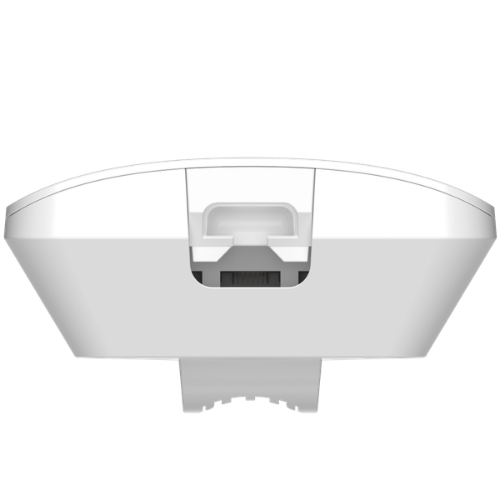

LYSORA 5 GHz 867 Mbps Outdoor Wireless Bridge CPE (13 dBi, 3 km / 1.86 mi, 3-Port)

Product Overview

The Lysora CPE3-P is a high-performance 5 GHz outdoor wireless bridge and Customer Premises Equipment (CPE) engineered for long-range point-to-point (PtP) and point-to-multipoint (PtMP) surveillance transmission and network extension. Powered by 802.11ac/an Wi-Fi technology, it delivers high-speed wireless throughput up to 867 Mbps paired with an integrated 13 dBi high-gain dual-polarized directional antenna capable of bridging data across distances up to 3 km (1.86 miles).

Designed for demanding outdoor security and elevator CCTV environments, the CPE3-P features TDMA protocol technology supporting 1-to-many topology configurations (up to 1 Master to  5 Slave CPEs) without packet collision or signal degradation. Equipped with 3 X 10/100 Mbps Ethernet ports (including PoE input and PoE passthrough/LAN capabilities) and an IP55 weatherproof UV-resistant enclosure with integrated 6 kV lightning surge protection, it provides cost-effective, plug-and-play wireless data bridging for remote IP cameras and edge networking.

Key System Features & Functionality

• 5 GHz 867 Mbps High Throughput: Utilizes the interference-free 5 GHz band (802.11a/n/ac) to transmit high-definition multi-camera video streams without lag.

• 13 dBi Directional Antenna: High-gain dual-polarized antenna focuses the radio beam for long-distance connectivity up to3 km (1.86 miles) line-of-sight.

• Advanced TDMA Protocol (1 to 5 PtMP): Eliminates hidden node collisions and latency, allowing one Access Point (AP) to seamlessly communicate with up to 5 Client CPEs.

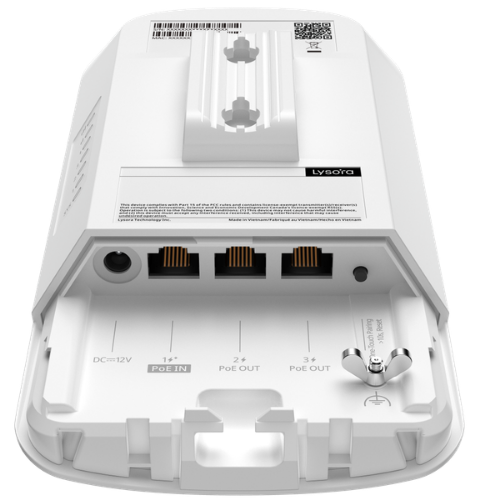

• 3-Port Fast Ethernet Switch: Includes 3 X 10/100 Mbps RJ45 ports for connecting multiple local IP cameras or devices directly without requiring an auxiliary switch.

• Passive PoE Power & Passthrough: Operates on standard 24 V Passive PoE input, simplifying pole and mast installations with single-cable power and data delivery.

• IP55 Weatherproof & 6 kV Surge Protection: Ruggedized UV-resistant housing engineered to withstand outdoor weather, rain, wind, and electrical surges.
