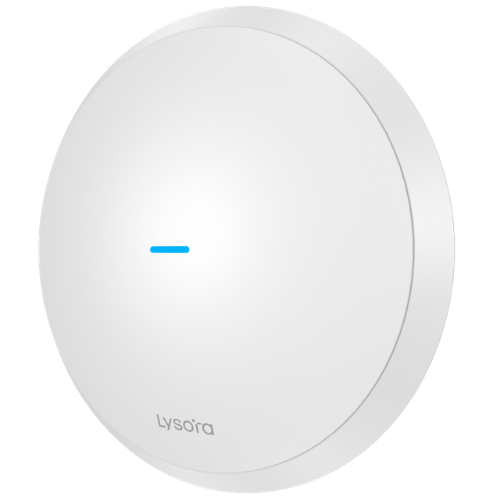

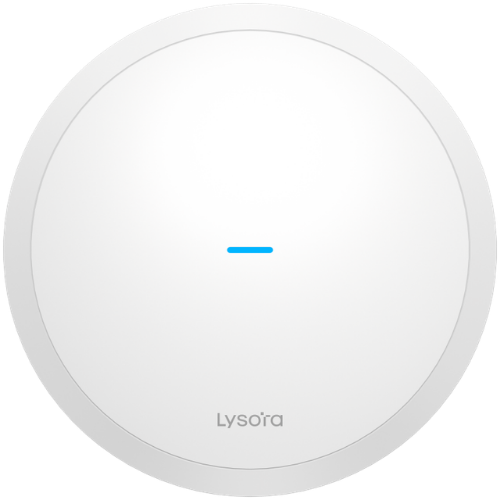

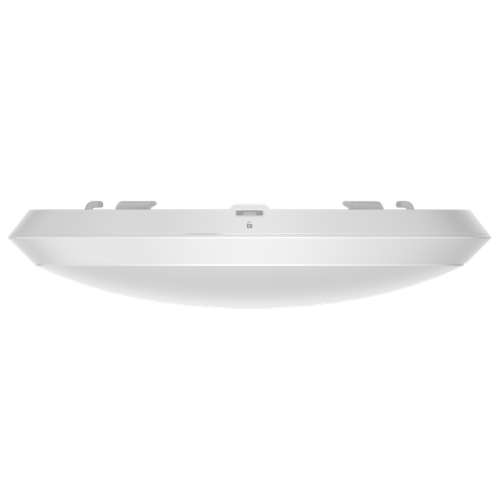

Lysora L6Lite – AX1800 Dual-Band Wi-Fi 6 Ceiling Mount Access Point (1 x GbE LAN, Cloud Managed)

Product Overview

The Lysora L6Lite  is a high-performance Wi-Fi 6 (802.11ax) indoor ceiling-mount wireless access point designed for small-to-medium enterprises, commercial spaces, hospitality, and modern smart homes. Powered by next-generation dual-band Wi-Fi 6 technology, it delivers combined wireless speeds of up to 1775 Mbps (1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz) with integrated high-gain omnidirectional antennas for comprehensive multi-device coverage.

Engineered with advanced OFDMA, MU-MIMO, and BSS Coloring technologies, the L6Lite significantly reduces network congestion and latency in high-density client environments. It features 1 x Gigabit Ethernet (10/100/1000 Mbps) port supporting standard IEEE 802.3af PoE for single-cable power and data installation, dual-mode versatility (AP Mode and Routing Mode), and seamless unified cloud management via the Lysora Cloud Portal and Mobile App for centralized provisioning, remote monitoring, and automated mesh networking.

Key System Features & Functionality

• Next-Gen Wi-Fi 6 AX1800 Speeds: Delivers aggregate dual-band data rates up to 1775 Mbps (1201 Mbps on 5 GHz + 574 Mbps on 2.4 GHz) for ultra-smooth video streaming and high-capacity wireless traffic.

• Dual Operation Modes (AP & Routing): Flexible network deployment supporting standalone Access Point (AP) mode or integrated Gateway/Routing mode with DHCP server and NAT support.

• High-Density OFDMA & MU-MIMO: Handles dozens of concurrent connected devices simultaneously with minimal latency, optimal airtime efficiency, and reduced channel interference.

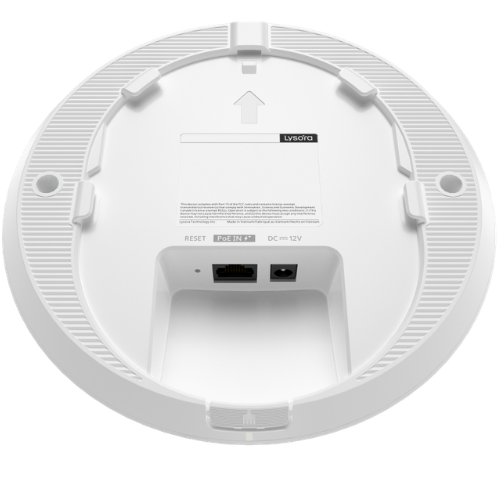

• Standard 802.3af PoE Powering: Simplified ceiling and wall installation powered via a single Gigabit Ethernet cable (IEEE 802.3af PoE) or local 12 VDC adapter.

• Unified Cloud & App Management: Centralized multi-site configuration, auto-RF optimization, client monitoring, and remote firmware updates through Lysora Cloud and mobile application.

• Seamless Fast Roaming & Mesh: Supports 802.11k/v/r intelligent fast roaming protocols, ensuring uninterrupted voice, video calls, and mobile data when moving between access points.
