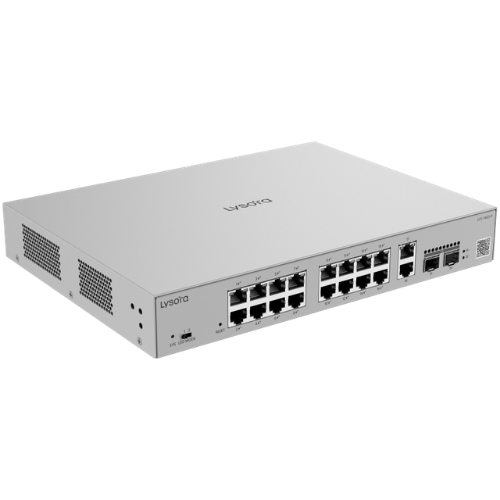

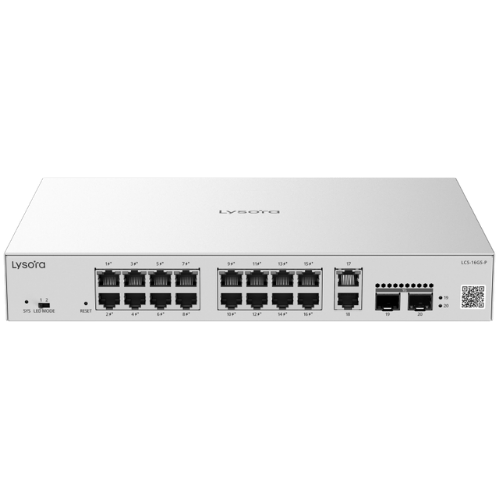

Lysora 20-Port Gigabit Smart Cloud-Managed PoE+ Switch (240W Budget, 1U Rackmount) - LCS-16GS-P

Product Overview

The Lysora LCS-16GS-P  is a high-capacity 20-port full Gigabit smart cloud-managed PoE+ network switch engineered to serve as a reliable distribution and aggregation backbone for commercial IP surveillance installations, enterprise wireless networks, access control clusters, and VoIP deployments. It features 16 X 10/100/1000 Mbps RJ45 PoE+ ports compliant with IEEE 802.3af/at (delivering up to 30 W per port supported by an expansive 240 W dedicated PoE power budget, alongside 2 X Gigabit RJ45 dedicated uplink ports and 2 X Gigabit SFP optical uplink slots for long-distance fiber backbone connectivity.

Engineered with software-controlled ePoE (swicextended PoE) transmission up to 250 meters, an automated PoE Watchdog self-healing mechanism to reboot unresponsive edge devices, and unified multi-platform cloud management (Lysora Cloud Portal, Mobile App, and Web GUI), the LCS-16GS-P eliminates unnecessary maintenance truck rolls. Housed in a robust, single-fan cooled 13-inch steel chassis with included 19-inch 1U rackmount ears and integrated ±6 kV surge and ±4 kV ESD protection, it delivers dependable, continuous Layer 2 switching for medium-to-large scale security projects.

Key System Features & Functionality

• 20-Port Full Gigabit Architecture: Configured with 16 X Gigabit PoE+ downlink ports, 2 X Gigabit RJ45 uplinks, and 2 X Gigabit SFP optical slots for seamless fiber and copper data aggregation.

• 240 W Total PoE+ Budget: Powers up to 16 cameras or network devices simultaneously with up to 30 W per port compliant with IEEE 802.3af/at.

• Software-Controlled ePoE & PoE Watchdog: Enables long-distance power and data runs up to 250 m (at 10 Mbps) and real-time PD monitoring that automatically power-cycles frozen cameras.

• Unified Cloud, App & Web Management: Remote multi-site configuration, port power scheduling, VLAN segmentation (802.1Q), and bandwidth management via Lysora Cloud Portal, Mobile App, and Web GUI.

• ±6 kV Surge & ±4 kV ESD Protection: Hardware-level protection protects internal electronics and connected edge devices from electrical spikes and lightning transients.

• 13-Inch 1U Rackmount Steel Chassis: Durable metal enclosure featuring single-fan smart active cooling and standard rackmount brackets for server rack, network cabinet, or desktop mounting.
