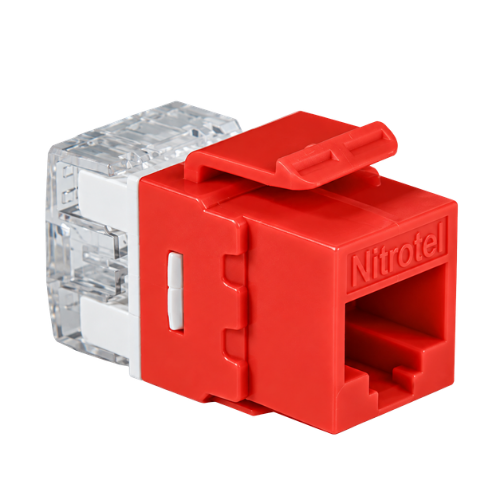

Nitrotel EngineerPro Cat6 180-Degree Slim Line UTP Keystone Jack (50µ" Gold, 110 IDC, T568A/B, Red)

Product Overview

The Nitrotel EngineerPro NTKJ1806ERDSL Category 6 Slim Line Keystone Jack is a commercial-grade modular RJ45 termination insert engineered for mission-critical network drops, security segmentation, and high-density telecommunication installations. Featuring a distinct vibrant red housing, this keystone jack is specifically tailored for dedicated security lines, emergency fire/life-safety drops, access control panel uplinks, or critical server pathways, allowing instant visual network isolation in commercial telecommunication closets. Designed with a 180-degree rear entry orientation and an ultra-narrow Slim Line body profile, it fits seamlessly side-by-side in high-density 24-port and 48-port 1U patch panels, multi-gang architectural wall plates, and surface-mount boxes without port crowding.

Engineered to exceed ANSI/TIA-568.2-D and ISO/IEC 11801 Class E standards up to 250 MHz, the NTKJ1806ERDSL utilizes a precision-engineered internal printed circuit board (PCB) to suppress Near-End Crosstalk (NEXT) and Return Loss on Gigabit Ethernet runs. The front 8P8C modular interface incorporates phosphor bronze contact pins plated with 50 microinches (50µ") of pure gold, ensuring minimal contact resistance, zero signal tarnishing, and corrosion resistance. The rear termination field features enhanced 180-degree 110-type IDC towers with dual T568A/T568B color-coded wiring labels. Compatible with standard impact tools (such as the NTPDT26) as well as the Nitrotel NTKJEZTT rapid termination tool, it delivers quick, gas-tight terminations certified for 100W PoE++ (IEEE 802.3bt) and Power over HDBaseT (PoH) deployments.

✅ Key Features

• Vibrant Red Identification Housing: Provides instant visual color-coding for dedicated security circuits, fire/life-safety links, access control uplinks, or critical data trunks.

• Compact Slim Line Form Factor: Narrow profile allows side-by-side installation in high-density 24-port/48-port 1U patch panels and multi-port faceplates without interference.

• Category 6 Gigabit Performance: Tested to frequencies exceeding 250 MHz, providing high-bandwidth performance for 1000BASE-T Gigabit Ethernet and IP video.

• 180-Degree Straight Rear Entry: Straight-through rear conductor entry streamlines cable management and preserves twisted-pair geometry during termination.

• High-Power 100W PoE++ Ready: Fully compliant with IEEE 802.3af (PoE), IEEE 802.3at (PoE+), IEEE 802.3bt Type 4 (PoE++ up to 100W), and PoH applications.

• 50µ" Gold-Plated Contacts: Heavy gold plating over phosphor bronze contact pins prevents oxidation and ensures reliable connectivity across 750+ mating cycles.

• Dual Tool Compatibility: Terminates with standard 110 impact punch-down tools or with the Nitrotel NTKJEZTT one-squeeze easy termination tool.

• Universal T568A / T568B Wiring Labels: Clear color-coded wiring guides on the IDC towers prevent field wiring errors.

• Flame-Retardant Polycarbonate Body: Molded from high-impact polycarbonate rated UL 94V-0 for superior commercial fire safety and mechanical strength.

 Compatible Devices

• Nitrotel 1-Port and 2-Port Surface-Mount Boxes (NTMB01LWH and NTPDU081501A2)

• 19-Inch 1U/2U 24-Port and 48-Port Unloaded Keystone Patch Panels

• Nitrotel Keystone Jack Easy Termination Tool (NTKJEZTT) and Impact Punch Down Tools (NTPDT26)

• Bulk Category 6 and Cat5e UTP Twisted Pair Cables (such as PROCAT6-W 23 AWG)

• Cat6/Cat6A Slim and Standard RJ45 Patch Cords (such as NTPC6E03BUSL and NTPC6E07BUSL)

• Single-Gang and Multi-Gang Keystone Wall Faceplates and Architectural Decora Inserts

• Access Control Controllers (such as C2-260), IP Security Cameras, NVRs, and PoE++ Switches
