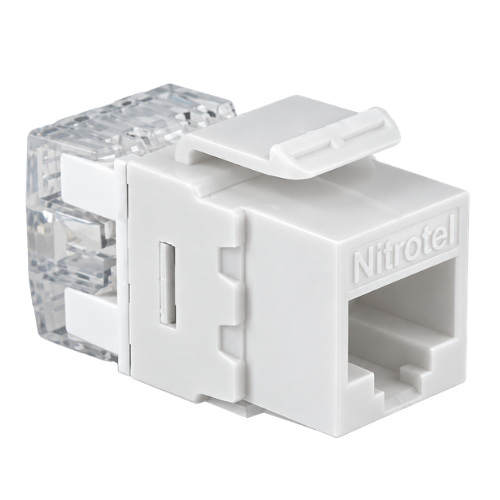

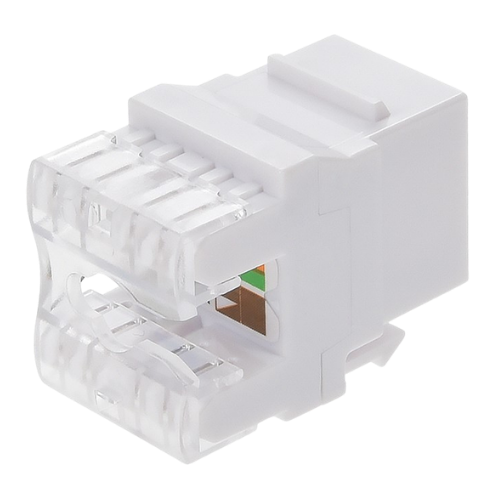

Nitrotel EngineerPro Cat6 180-Degree Slim Line UTP Keystone Jack (50µ" Gold, 110 IDC, T568A/B, White)

Product Overview

The Nitrotel EngineerPro NTKJ1806EWHSL Category 6 Slim Line Keystone Jack is a component-rated modular RJ45 termination insert engineered for high-density telecommunication spaces, multi-port wall faceplates, surface-mount boxes, and patch panels. Designed with a standard 180-degree rear entry orientation and an ultra-narrow Slim Line body profile, this keystone jack allows side-by-side positioning in high-density multi-port configurations without port crowding or physical housing deformation.

Engineered to exceed ANSI/TIA-568.2-D and ISO/IEC 11801 Class E standards up to 250 MHz, the NTKJ1806EWHSL features a patented internal printed circuit board (PCB) that suppresses Near-End Crosstalk (NEXT) and Return Loss on Gigabit Ethernet runs. The front 8P8C modular interface incorporates phosphor bronze contact pins plated with 50 microinches (50µ") of pure gold, ensuring low contact resistance and corrosion resistance. The rear termination field features enhanced 180-degree 110-type IDC towers with dual T568A/T568B color-coded wiring labels. Compatible with standard impact tools (such as the NTPDT26) as well as the Nitrotel NTKJEZTT rapid termination tool, it provides quick, reliable, gas-tight terminations for commercial enterprise networks and IP surveillance systems.

✅ Key Features

• Compact Slim Line Form Factor: Narrow profile fits side-by-side in high-density 24-port/48-port 1U patch panels, multi-gang faceplates, and surface-mount boxes.

• Category 6 Gigabit Performance: Tested to frequencies exceeding 250 MHz, providing high-bandwidth performance for 1000BASE-T Gigabit Ethernet.

• 180-Degree Rear Wire Entry: Straight-through rear conductor entry simplifies cable management and maintains pair geometry during punch-down.

• High-Power PoE++ Ready: Fully compliant with IEEE 802.3af (PoE), IEEE 802.3at (PoE+), IEEE 802.3bt Type 4 (PoE++ up to 100W), and Power over HDBaseT (PoH).

• 50µ" Gold-Plated Contacts: Heavy gold plating over phosphor bronze contact pins prevents oxidation and ensures reliable connectivity across 750+ mating cycles.

• Rapid Tool Compatibility: Terminates with standard 110 impact punch-down tools or with the Nitrotel NTKJEZTT one-squeeze easy termination tool.

• Universal T568A / T568B Wiring Labels: Clear color-coded wiring guides on the IDC towers prevent field wiring errors.

• Flame-Retardant Thermoplastic Body: Molded from high-impact polycarbonate rated UL 94V-0 for safety and flame resistance.

Compatible Devices

• Nitrotel 1-Port and 2-Port Surface-Mount Boxes (NTMB01LWH and NTPDU081501A2)

• 19-Inch 1U/2U 24-Port and 48-Port Unloaded Keystone Patch Panels

• Nitrotel Keystone Jack Easy Termination Tool (NTKJEZTT) and Impact Punch Down Tools (NTPDT26)

• Bulk Category 6 and Cat5e UTP Twisted Pair Cables (such as PROCAT6-W 23 AWG)

• Cat6/Cat6A Slim and Standard RJ45 Patch Cords (such as NTPC6E03BUSL and NTPC6E07BUSL)

• Standard Single-Gang and Multi-Gang Keystone Wall Plates and Architectural Decora Inserts

• IP Surveillance Cameras, VoIP Telephony Systems, PoE+ Network Switches, and Access Control Panels
