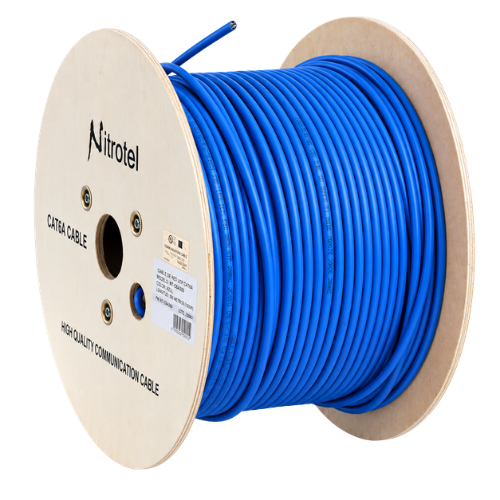

Nitrotel EngineerPro Cat6A Augmented 10GBASE-T 600MHz 23 AWG Solid 4-Pair CMP Plenum Network Cable (1000FT, Blue)

Product Overview

The Nitrotel EngineerPro NTNC6ABU-P Category 6A Augmented (Cat6A) Bulk Network Cable is an enterprise-grade, high-bandwidth structured cabling solution engineered to support mission-critical 10GBASE-T (10 Gigabit Ethernet) transmission over full 100-meter channel runs. Tested to extended performance frequencies up to 600 MHz, this 4-pair cable exceeds the performance criteria defined by ANSI/TIA-568-C.2 Category 6A and ISO/IEC 11801 Edition 2 Class Ea standards, making it the premier choice for enterprise data centers, healthcare facilities, university campuses, and ultra-high-definition IP surveillance backbones.

Constructed with heavy-duty 23 AWG solid pure electrolytic bare copper conductors, the NTNC6ABU-P incorporates an engineered internal cross-web polyethylene spline that physically isolates conductor pairs, suppressing Near-End Crosstalk (NEXT) and Alien Crosstalk (ANEXT) in high-density bundles. Encased in a certified CMP (Communications Plenum) fire-retardant, low-smoke jacket, this cable meets strict NFPA 262 fire safety codes, allowing direct routing through drop ceilings, raised floors, HVAC air handling plenums, and environmental air spaces without requiring metal conduit. Fully rated for high-wattage Type 4 100W PoE++ (IEEE 802.3bt) applications, it guarantees low heat rise and consistent power delivery to high-power PTZ cameras, Wi-Fi 6/6E/7 access points, and digital signage.

✅ Key Features

• 10GBASE-T 10-Gigabit Performance: Engineered and certified for full 10 Gbps transmission speeds up to 100 meters (328 ft) without throughput degradation.

• Extended 600MHz Tested Bandwidth: Provides substantial signal-to-noise headroom beyond standard 500 MHz Cat6A specifications for future-proof deployments.

• CMP Plenum-Rated Fire Safety: Low-smoke, flame-retardant jacket certified for installation within environmental air return plenums and riser shafts without conduit.

• 23 AWG Solid Pure Bare Copper: 100% annealed bare copper conductors deliver superior electrical conductivity, optimal structural integrity, and minimal DC resistance.

• Optimized Alien Crosstalk (ANEXT) Suppression: Internal dielectric cross-separator isolates conductor pairs to eliminate interference in dense cable pathways.

• High-Power 100W PoE++ Support: Fully compliant with IEEE 802.3bt (Type 3 and Type 4) Power over Ethernet, reducing thermal buildup in bundled configurations.

• Rigorous Standards Compliance: Certified to ANSI/TIA-568-C.2, ISO/IEC 11801 Ed. 2 Class Ea, and UL/ETL CMP safety requirements.

• Sequential Length Counter: Continuous descending footage/meter markings printed along the outer jacket streamline inventory tracking and on-site job estimates.

Compatible Devices

• 19-Inch 1U/2U 24-Port and 48-Port Cat6A 10G RJ45 Patch Panels (such as 110-IDC and Keystone-type panels)

• Category 6A Shielded/Unshielded Toolless RJ45 Keystone Jacks and Field Termination Plugs

• 10GbE Top-of-Rack Enterprise Switches, Managed PoE++ Core Switches, and SFP+ RJ45 Transceivers

• High-Density Server Racks and Wall-Mount Enclosures (such as LW060512UB, 300739, and 300705)

• Multi-Sensor Panoramic Cameras, High-Power IR PTZ Dome Cameras, and 4K/8K Enterprise NVRs

• Wi-Fi 6 / Wi-Fi 6E / Wi-Fi 7 Enterprise Wireless Access Points and VoIP Infrastructure

• All-In-One Pass-Through and Standard Crimping Tools (such as the Nitrotel NTPTT500)
