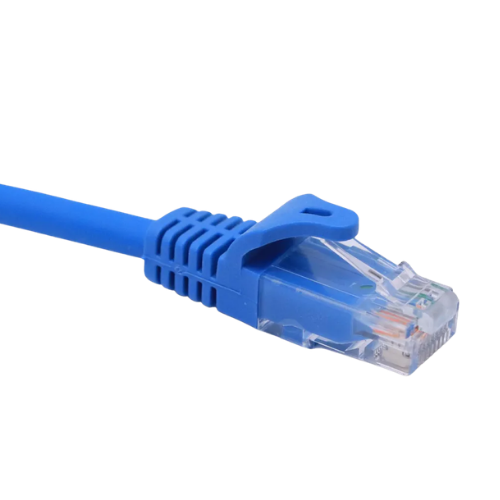

Nitrotel EngineerPro Cat6 UTP 28 AWG Slim Booted Patch Cord 3ft (Snagless, Blue)

Product Overview

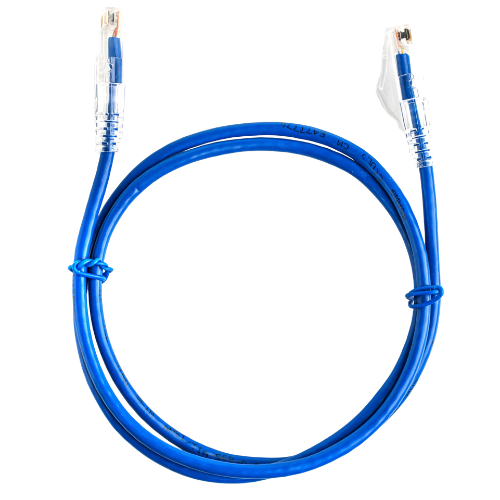

The Nitrotel EngineerPro NTPC6E03BUSL Slim Category 6 Patch Cord is a compact, high-density patch lead engineered specifically for short-run, port-to-port interconnections between patch panels and network switches inside server racks and wall-mount cabinets. Measuring 3 feet (0.91 meters) in length, this cable is designed to eliminate excess cable slack, loops, and wire clutter, resulting in clean, professional rack aesthetics and unobstructed maintenance access.

Built using reduced-diameter 28 AWG stranded bare copper conductors, the NTPC6E03BUSL achieves an ultra-slim outer diameter (~3.6 mm) that is over 36% thinner than standard 24 AWG patch cables. This compact profile increases pathway capacity and significantly improves convective airflow across high-density active electronics, minimizing thermal hotspots in enclosed cabinets such as the LW060512UB and NTFWC6U450. Rated for frequencies up to 250 MHz and supporting 1000BASE-T Gigabit Ethernet, it features an ergonomic snagless strain-relief boot to protect the RJ45 latch from snapping during servicing, along with 50-microinch gold-plated contacts for optimal signal transfer and long-term corrosion resistance.

✅ Key Features

• Ideal 3-Foot Rack Length: Sized for 1U-to-1U cross-connect patching between patch panels and adjacent network switches, eliminating cable bundle slack.

• 28 AWG Ultra-Slim Construction: Compact ~3.6 mm outer jacket diameter frees up valuable space inside wire managers and high-density rack channels.

• Superior Rack Thermal Management: Reduced cable bulk promotes natural and forced airflow around active switches and NVR hardware.

• Category 6 Gigabit Transmission: Rated up to 250 MHz to ensure reliable, high-speed Gigabit Ethernet performance for IP surveillance and enterprise data.

• Snagless Molded Boot Design: Integrated latch guard prevents plug retention clips from catching or breaking during re-patching and maintenance.

• 50µ" Gold-Plated Phosphor Bronze Contacts: Provides low contact resistance and high corrosion immunity across 750+ insertion cycles.

• High Flexibility & Tight Bend Radius: Highly stranded copper conductors allow clean routing in ultra-tight corners without signal loss or physical strain.

• Vibrant Blue Commercial Color: Simplifies circuit mapping and visual identification for core data networks, workstations, or CCTV links.

Compatible Devices

• 19-Inch 1U/2U 24-Port and 48-Port Cat6 RJ45 Patch Panels (such as the Nitrotel EngineerPro NTPPC624U)

• 1U/2U Managed and Unmanaged Gigabit PoE/PoE+ Network Switches (such as LP-SG642FP)

• Wall-Mount and Floor-Standing Network Equipment Cabinets (such as LW060512UB, 300739, and NTFWC6U450)

• Rackmount and Desktop Network Video Recorders (NVRs) and Video Splitters (such as HM-HS702B)

• Multi-Door Networked Access Control Panels (such as C2-260) and IP Intercom Master Stations

• Standard 8P8C RJ45 Modular Wall Jacks, Surface Mount Boxes, and Workstations
