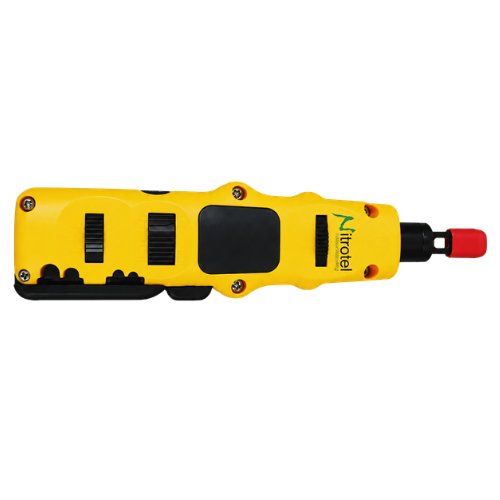

Nitrotel Professional Impact Punch Down Tool (22–26 AWG, Adjustable HI/LO Impact, 110 & Krone Compatible)

Product Overview

The Nitrotel NTPDT26 Professional Impact Punch Down Tool is an essential structured cabling installation hand tool engineered for rapid, precise seating and trimming of 22 to 26 AWG network and telecom conductors. Designed for termination on 110-type wiring blocks, Category 5e/6/6A RJ45 keystone jacks, cross-connect frames, and network patch panels (such as the NTPPC624U), this tool ensures clean, gas-tight insulation displacement connections (IDC) with minimal hand fatigue.

Engineered with an internal spring-loaded impact mechanism, the NTPDT26 features an adjustable HI / LO impact force selector dial that allows technicians to calibrate driving force depending on wire gauge, high-density block sensitivity, or heavy-gauge cable terminations. The tool incorporates an interchangeable, reversible twist-and-lock precision blade crafted from hardened alloy tool steel, providing a seating-and-cutting edge on one end and a seating-only edge on the reverse. With an ergonomic, cushioned handle, an integrated spare blade storage chamber in the handle base, and fold-out hook and spudger utility extraction tools, it delivers the durability and versatility required for high-volume enterprise terminations.

✅ Key Features

• Optimized for 22–26 AWG Conductors: Precision-engineered to seat and trim standard 22, 23, 24, and 26 AWG solid and stranded copper network wires.

• Adjustable HI/LO Spring Impact Force: Calibrated impact wheel allows seamless switching between Low (LO: ~11 kg / 24 lbs) for delicate keystones and High (HI: ~15 kg / 33 lbs) for solid 23 AWG Cat6 cables.

• Reversible Twist-and-Lock Blade: Hardened alloy steel blade features a dual-sided design—one end seats and shears excess wire, while the reverse seats without cutting.

• Universal 110/88 & Krone Compatibility: Accommodates standard interchangeable bayonet twist-lock blades for 110, 66, Krone, and BIX distribution hardware.

• Integrated Spare Blade Storage: Convenient twist-cap compartment inside the handle base keeps a secondary or alternative blade secure and accessible on the jobsite.

• Built-In Wire Hook & Spudger Tools: Retractable fold-out side tools allow quick tracing, pulling of mispunched wires, and clearing of debris from IDC slots.

• Ergonomic Shock-Absorbing Grip: Bi-material contoured handle dampens hand shock and vibration during repetitive high-density patch panel punching.

Compatible Devices

• 19-Inch 1U/2U 24-Port and 48-Port Cat5e / Cat6 / Cat6A Patch Panels (such as NTPPC624U)

• Cat5e, Cat6, and Cat6A 90-Degree and 180-Degree 110/Krone RJ45 Keystone Jacks

• 110 and 66 Wiring Cross-Connect Distribution Terminal Blocks

• Bulk 4-Pair Unshielded and Shielded Twisted Pair Network Cables (such as PROCAT6-W 23 AWG)

• Multi-Conductor Low-Voltage Security Cables (such as SF2204LE-100M)

• Standard Twist-and-Lock Bayonet Replacement Blades (110, 66, Krone)
