Nitrotel EngineerPro 1U 24-Port Category 6 UTP Patch Panel (110 & Krone Dual IDC, T568A/B, 19" Rackmount)

Product Overview

The Nitrotel EngineerPro NTPPC624U 24-Port Cat6 Patch Panel is a commercial-grade 19-inch structured cabling distribution unit engineered to terminate, organize, and manage high-density Gigabit Ethernet connections in telecommunication rooms, data closets, and equipment enclosures. Requiring just 1U of vertical rack space, this 24-port unshielded (UTP) patch panel supports bandwidth frequencies up to 250 MHz and transmission throughput up to 1000BASE-T (Gigabit Ethernet), meeting and exceeding ANSI/TIA-568-C.2 and ISO/IEC 11801 Category 6 component standards.

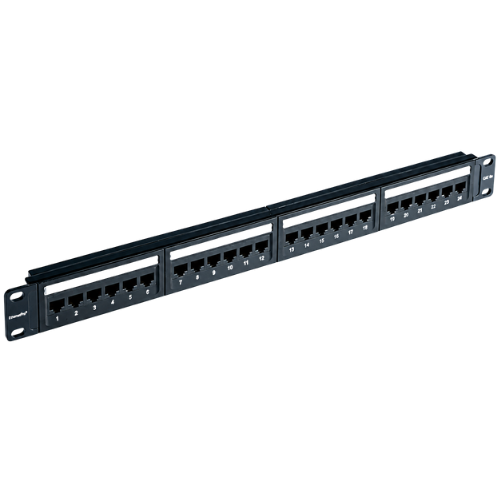

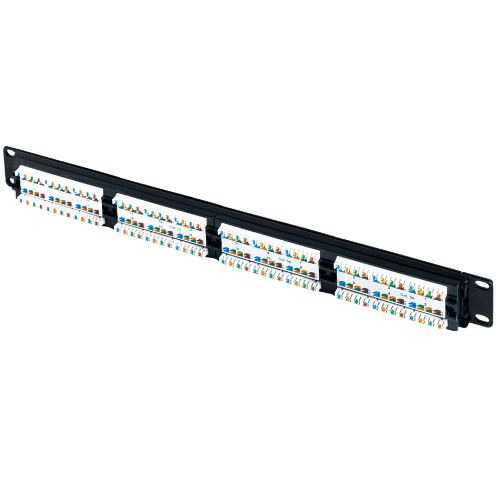

Built on a rigid heavy-duty cold-rolled SPCC steel panel finished in a durable electrostatic matte black powder coat, the NTPPC624U features front-facing 8P8C RJ45 modular jacks equipped with 50-microinch gold-plated contact pins that minimize insertion loss, resist oxidation, and ensure dependable signal conductivity across thousands of patch cord mating cycles. The rear termination field features universal dual-type IDC terminal blocks (compatible with both 110 and Krone punch-down impact tools) with clear, color-coded wiring labels supporting both T568A and T568B wiring configurations. Complete with write-on port designation labels, numbered front ports, and a rear cable management strain-relief bracket, it provides a clean, organized, and reliable distribution backbone for enterprise networks and IP surveillance systems.

✅ Key Features

• 1U 24-Port High-Density Form Factor: Consolidates 24 Category 6 RJ45 connections into a standard 1U height profile to maximize vertical rack space.

• Category 6 Gigabit Performance: Rated for transmission frequencies up to 250 MHz, ensuring zero-bottleneck performance for Gigabit Ethernet and 4K IP video.

• Universal 110 & Krone Dual IDC Blocks: Accommodates standard 110-style or Krone punch-down impact tools for fast, versatile field terminations.

• 50µ" Gold-Plated RJ45 Contacts: Heavy gold plating over phosphor bronze contacts prevents tarnishing, corrosion, and contact wear over repeated cycles.

• Dual T568A / T568B Color Coding: Highly visible color-coded wiring diagrams simplify pair seating and eliminate technician wiring mistakes.

• Rigid Heavy-Duty Steel Construction: Electrostatic powder-coated SPCC steel chassis prevents sagging and bending during high-impact punch-down operations.

• Integrated Rear Cable Management: Includes a rear cable support bar with tie-wrap slots to relieve strain on terminated conductor pairs.

• Numbered Ports & Write-On Designation Strips: Clear port numbering (1 to 24) and replaceable front label fields streamline network documentation and port tracing.

Compatible Devices

• Bulk Unshielded Cat6 and Cat5e 4-Pair Network Cables (such as the PROCAT6-W 23 AWG UTP)

• 19-Inch Wall-Mount and Floor-Standing Server Cabinets (such as the 300705, 300739, LW060512UB, and NTFWC6U450)

• Category 6 RJ45 Stranded and Solid Patch Cords with Pass-Through Plugs (terminated with NTPTT500)

• Standard 110-Type and Krone-Style Punch-Down Impact Hand Tools

• Gigabit PoE/PoE+ Ethernet Network Switches (such as the LP-SG642FP switch)

• Commercial Network Video Recorders (NVRs), Access Control Panels (such as C2-260), and Patch Leads
