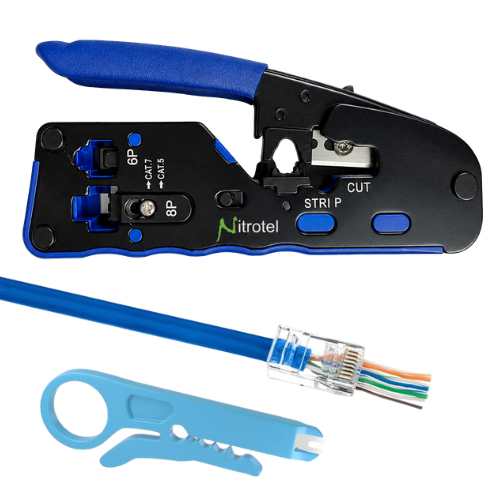

Nitrotel All-In-One Pass-Through RJ45 Modular Plug Crimping Tool (Cat5e / Cat6 / Cat6A / Cat7)

Product Overview

The Nitrotel NTPTT500 Pass-Through Crimping Tool is an all-in-one professional termination hand tool engineered for high-speed, precision crimping of standard and pass-through (EZ / End Pass-Through) 8P8C modular plugs. By allowing conductor wires to feed directly through the front face of the connector, this tool allows technicians to easily verify wiring order (T568A / T568B) prior to termination. In a single squeeze motion, the tool's precision flush-trimming blade automatically cuts the excess wire flush with the plug face while seating the gold-plated contact pins.

Manufactured from medium carbon steel finished with a hardened black oxide coating, the NTPTT500 utilizes a true parallel-action crimping mechanism paired with a smooth ratcheting cycle to deliver uniform, vertical crimping pressure across all eight pins. It integrates a round cable stripper, a flat wire cutter, a regulating screw for Cat.5e/Cat.6/Cat.7 plug heights, and an external metal ground-clip crimping notch for shielded connectors. Measuring just 14 × 6 × 2.4 cm and featuring an ergonomic bi-material non-slip grip with a compact handle lock, the NTPTT500 is an essential field tool for enterprise structured cabling, IP video surveillance setups, and high-bandwidth telecom installations.

✅ Key Features

• EZ Pass-Through & Standard Crimp: Simultaneously crimps modular plug contacts and cleanly shears protruding excess wire flush with the front connector face.

• True Parallel Crimp Action: Delivers precise, even vertical pressure across all 8 pins without angular distortion or intermittent contacts.

• Wide Category Compatibility: Supports 8P8C RJ45 connectors for Cat5e, Cat6, Cat6A, and Cat7 cables, as well as 6P RJ11/RJ12 telephone plugs.

• All-in-One Cut, Strip & Crimp: Integrated round cable jacket stripper and flat-wire cutter eliminate the need to carry separate prep tools.

• Smooth Full-Cycle Ratchet Mechanism: Prevents premature release to guarantee a complete, fully seated crimp cycle every time.

• Shielded Ground Clip Crimper: Built-in cavity specifically crimps external metal ground clips on shielded (STP/FTP) Cat6A/Cat7 plugs.

• Hardened Black-Oxide Carbon Steel: Heat-treated medium carbon steel frame resists wear, corrosion, and jobsite mechanical strain.

• Compact Ergonomic Profile: Measures only 14 cm in length and includes an integrated handle safety lock for convenient tool-pouch and pocket storage.

Compatible Devices

• Cat5e, Cat6, Cat6A, and Cat7 Pass-Through (EZ) RJ45 Modular Plugs (UTP and Shielded STP)

• Standard Closed-End 8P8C RJ45 Modular Plugs and 6P6C / 6P4C RJ11/RJ12 Telephone Plugs

• Bulk Unshielded and Shielded Network Cables (such as PROCAT6-W 23 AWG UTP)

• IP Surveillance Cameras, NVR/DVR Local Network Drops, and Video Balun Runs (such as HM-950)

• Gigabit PoE/PoE+ Network Switches (such as LP-SG642FP) and Access Control Panels (such as C2-260)
