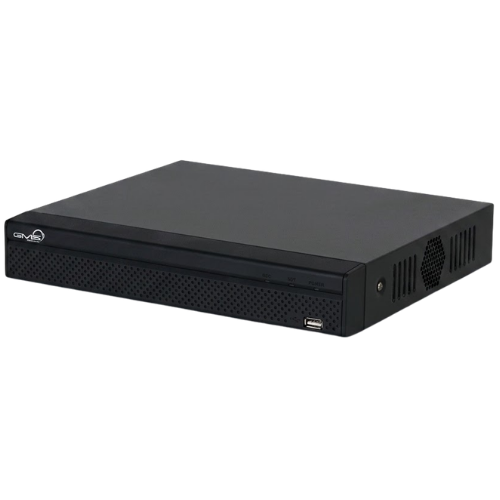

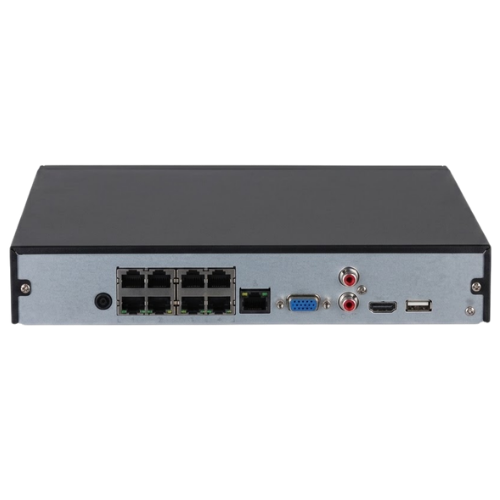

- OEM NVR2108HS-8P-S3 8-Channel 4K 1U Network Video Recorder with 8 PoE Ports (Smart H.265+, 80 Mbps, Up to 12MP, 1 SATA up to 16TB, 4K HDMI/VGA) OEM NVR2108HS-8P-S3 8-Channel 4K 1U Network Video Recorder with 8 PoE Ports (Smart H.265+, 80 Mbps, Up to 12MP, 1 SATA up to 16TB, 4K HDMI/VGA)
- Description
- Key Technical Specifications
Product Overview
The OEM NVR2108HS-8P-S3 is an 8-channel commercial 1U compact network video recorder engineered for streamlined, high-resolution IP surveillance deployments across retail, commercial facilities, and residential environments. Equipped with an integrated 8-port Power over Ethernet (PoE) switch, the recorder delivers true plug-and-play installation by supplying both network data transmission and electrical power to all connected IP cameras over single Cat5e/Cat6 runs, significantly cutting down on cabling infrastructure and auxiliary power supplies.
Built on an industrial-grade embedded processor, the unit handles up to 80 Mbps of incoming network bandwidth and supports high-resolution recording up to 12 Megapixels (4K UHD and beyond). It features native Smart H.265+ and Smart H.264+ dual-stream decoding, slashing storage consumption and transmission overhead by up to 70% while maintaining crisp evidentiary fidelity. The NVR seamlessly processes advanced camera-based AI analytics, including SMD Plus (Smart Motion Detection Plus) human and vehicle classification, perimeter tripwires, and intrusion zones. Hardware interfaces include 1 internal SATA III interface (supporting up to 16 TB), a native 4K HDMI video output (3840 × 2160) alongside a simultaneous VGA port, 1 RCA Audio Input / 1 RCA Audio Output, and dual USB ports for quick export.
Key System Features & Functionality
-
Plug-and-Play 8-Port PoE Switch: 8 built-in 10/100 Mbps IEEE 802.3af/at PoE ports deliver integrated power and data to cameras without requiring external PoE switches.
-
Ultra-High-Resolution 12MP Decoding: Supports high-density video streams up to 12MP (4K/UHD) across all channels for critical license plate, retail, and facial verification.
-
Robust 80 Mbps Network Throughput: Accommodates 80 Mbps incoming bandwidth (80 Mbps recording, 60 Mbps outgoing) for fluid, stutter-free multi-channel streaming.
-
High-Efficiency Smart H.265+ Compression: Substantially reduces hard drive space consumption and network load while maintaining evidentiary image sharpness.
-
Native 4K HDMI Video Output: Displays razor-sharp 3840 × 2160 video on commercial 4K monitors alongside an independent/simultaneous 1080p VGA output.
-
Camera-Side AI Analytics Integration: Fully decodes and manages camera-based intelligent functions such as SMD Plus (human/vehicle classification) and perimeter protection rules.
-
Expanded Internal Storage Capacity: Features 1 SATA III bay supporting surveillance-grade hard drives up to 16 TB.
-
Comprehensive Audio & Export Options: Equipped with 1 RCA Audio In / 1 RCA Audio Out for two-way audio pass-through, plus dual USB 2.0 ports for mouse control and rapid video backup.
|
System |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Main Processor |
Industrial-grade embedded processor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating System |
Embedded Linux |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Interface |
Web; Local GUI |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
AI |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
AI by Camera |
Perimeter protection; SMD Plus |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Perimeter Protection |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Perimeter Performance of AI by Camera (Number of Channels) |
4 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
SMD Plus |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
SMD Plus by Camera |
4-channel SMD Plus (AI by camera), secondary filtering for human and motor vehicle SMD Plus, reducing false alarms caused by leaves, rain and lighting condition change |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio and Video |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Access Channel |
8 channels |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network Bandwidth |
Access: 80 Mbps; Storage: 80 Mbps; Forward: 60 Mbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Resolution |
12MP; 8MP; 5MP; 4MP; 3MP; 2MP; 720p; D1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Decoding Capability |
1-channel 12MP@30 fps; 1-channel 8MP@30 fps; 2-channel 5MP@30 fps; 3-channel 4MP@30 fps; 6-channel 1080p@30 fps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video Output |
1 × VGA, 1 × HDMI (simultaneous) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Multi-screen Display |
1, 4, 8, 9 views |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Third-party Camera Access |
Onvif |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Compression Standard |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video Compression |
Smart H.265; H.265; Smart H.264; H.264 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Compression |
PCM; G711A; G711U; G726 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network Protocol |
HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; DDNS; Alarm Server; IP Search (Supports IP camera, DVR, NVS, etc.); P2P |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Mobile Phone Access |
Android; iOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Interoperability |
ONVIF (profile T/S/G); CGI; SDK |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Browser |
Chrome; IE 9 or later; Firefox |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Recording Playback |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Multi-channel Playback |
Up to 8 channels |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Record Mode |
Manual record; alarm record; motion detection record; schedule record |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Method |
Local HDD and network |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Backup Method |
USB device |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Playback Function |
1. Play; pause; stop; fast forward; fast backward; rewind; play by frame |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General Alarm |
Motion detection; privacy masking; video loss; PIR alarm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Anomaly Alarm |
Camera offline; storage error; disk full; IP conflict; MAC conflict; login lock; cyber security exception |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Intelligent Alarm |
Perimeter protection; SMD Plus |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm Linkage |
Recording; snapshot; buzzer; log; preset; email; tour |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Input |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Output |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
HDD Interface |
1 SATA port, up to 16 TB. The maximum HDD capacity varies with environment temperature |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
USB |
1 front USB 2.0 port, 1 rear USB 2.0 port |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
HDMI |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
VGA |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network Port |
1 × RJ-45, 10/100 Mbps self-adaptive Ethernet port |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
PoE Port |
8 × PoE ports, 10/100 Mbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply |
48/53 VDC, 2/1.8 A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Consumption |
Total output of NVR is ≤ 10 W (without HDD) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Net Weight |
0.89 kg (1.95 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
1.94 kg (4.28 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
260 mm × 232.7 mm × 47.6 mm (10.24" × 9.16" × 1.87") (W × L × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Packaging Dimensions |
117 mm × 373 mm × 307 mm (4.61" × 14.69" × 12.09") (W × L × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–10 °C to +55 °C (14 °F to +131 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
10%–93% (RH) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Installation |
Rack or desktop |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
CE: EN62368-1; EN55032; EN55024; EN55035; EN61000-3-2; EN61000-3-3; EN50130-4 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
