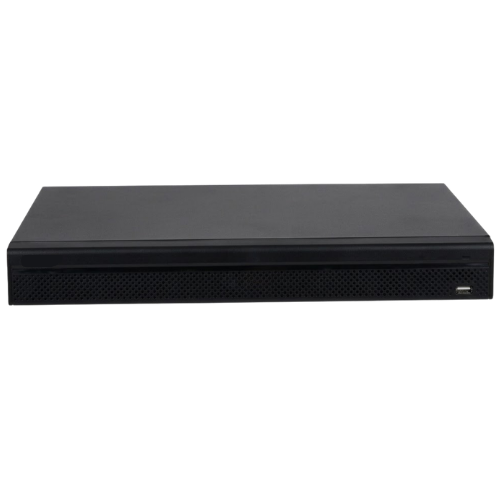

OEM DH-NVR4208-8P-4KS2/L 8-Channel 4K 1U Network Video Recorder with 8 PoE Ports (Smart H.265+, 128 Mbps, 2 SATA up to 32TB, 4K HDMI, 8-Port PoE 130W)
- Description
- Key Technical Specifications
Product Overview
The NVR4208-8P-4KS2/L is a commercial-grade 8-channel 4K 1U network video recorder engineered for demanding mid-to-large surveillance deployments in commercial centers, educational facilities, and enterprise facilities. Built with an integrated 8-port Power over Ethernet (PoE) switch delivering a robust power budget of up to 130W, it simplifies deployment by transmitting high-bandwidth digital video and system power directly over standard Cat5e/Cat6 network cabling without needing separate midspans or field power supplies.
Powered by an industrial multi-core embedded processor running an optimized Linux kernel, the unit supports an access network bandwidth of 128 Mbps (80 Mbps incoming when AI functions are enabled) and high-definition IP camera recording up to 12 Megapixels. It features multi-channel decoding performance capable of handling 2 channels at 4K (30 fps) or 8 channels at 1080p (30 fps). Utilizing Smart H.265+ and Smart H.264+ dual-stream encoding, it reduces bandwidth overhead and storage consumption by up to 70% while preserving evidentiary target detail. The system seamlessly handles camera-side intelligent AI analytics including SMD Plus (human/vehicle classification), perimeter protection (tripwire and intrusion), and face detection. Hardware capabilities feature dual SATA III interfaces (supporting up to 32 TB total storage), a native 4K HDMI video output (3840 × 2160), independent/simultaneous VGA output, 1 RCA Audio In / 1 RCA Audio Out, and 4 Alarm Inputs / 2 Alarm Outputs for external automation and physical sensor integration.
Key System Features & Functionality
-
Integrated 8-Port PoE Switch (130W Budget): 8 direct plug-and-play IEEE 802.3af/at ports provide up to 25.5W per port with a 130W aggregate power budget for multi-camera deployments.
-
Ultra HD 4K Surveillance & 12MP Camera Support: Seamlessly decodes and records resolutions up to 12MP with multi-channel decoding of 2 channels at 4K (30 fps) or 8 channels at 1080p (30 fps).
-
Robust 128 Mbps Bandwidth Capacity: Supports 128 Mbps access bandwidth (80 Mbps incoming when camera AI functions are active) for uninterrupted multi-channel streaming.
-
Dual SATA Redundant Storage Architecture: Houses 2 internal SATA III hard drive bays supporting up to 16 TB per drive (32 TB aggregate capacity).
-
Camera-Side AI Feature Management: Integrates with intelligent IP cameras to record, trigger, and quickly search SMD Plus (human/vehicle detection), face detection, and perimeter tripwires.
-
High-Efficiency Smart H.265+ Compression: Substantially cuts network bitrate and hard drive consumption while maintaining high image clarity.
-
Native 4K HDMI Display Output: Drives commercial displays at up to 3840 × 2160 (4K UHD) resolution alongside a simultaneous VGA monitor output.
-
Physical Alarm & Two-Way Audio Integration: Equipped with 4 Alarm Inputs and 2 Alarm Outputs for third-party detectors and strobes, plus RCA Audio I/O for interactive two-way voice talk-down.
|
System |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Main Processor |
Industrial-grade embedded processor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
OS |
Embedded Linux |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operation Interface |
Web/operating in local GUI |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Perimeter Protection by Camera |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Performance |
8 channels |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
AI Search |
Search for pictures by channel, time and event type |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Face Detection by Camera |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Performance |
4 channels |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Face Attributes |
6 attributes: Gender, age, glasses, expression, mouth mask, and beard |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
AI Search |
Search for pictures by channel, time and face attributes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
SMD Plus by Camera |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Performance |
8 channels |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
AI Search |
Search by target classification (human, vehicle) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Access Channel |
8 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network Bandwidth |
Access: 160 Mbps; Storage: 160 Mbps; Forward: 64 Mbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Resolution |
8MP; 6MP; 5MP; 4MP; 3MP; 1080p; 720p; D1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Decoding Capability |
8 × 1080p@30 fps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video Output |
1 × VGA output, 1 × HDMI output, supports simultaneous video sources output for VGA and HDMI |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Multi-screen Display |
1 , 4, 8, 9 views |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Third-party Camera Access |
ONVIF; RTSP |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Compression |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video |
Smart H.265/H.265/Smart H.264/H.264/MJPEG |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio |
PCM/G711A/G711U/G726/AAC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network Protocol |
HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; IP Search (Support IP camera; DVR; NVS; etc.); P2P; auto register |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Mobile Phone Access |
Android; iOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Interoperability |
ONVIF(profile T/S/G); CGI; SDK |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Browser |
Chrome; IE9 or later; firefox |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Record Playback |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Multi-channel Playback |
Up to 8 channels for playback |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Record Mode |
Manual record; alarm recording; SMD recording; smart recording |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage |
Local HDD; network |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Backup |
USB storage device |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Playback Function |
1. Play/pause/stop/slow/quick/backward/by frame 2. Full screen, backup (video clip/file), partial zoom in, and audio on/off |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Disk Group |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General Alarm |
Motion detection, privacy masking, video loss, scene changing, PIR alarm, IPC external alarm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Anomaly Alarm |
Camera disconnection, storage error, disk full, IP conflict, MAC conflict, login locked, and cybersecurity exception |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Intelligent Alarm |
Face detection, perimeter protection (intrusion and tripwire), IVS, people counting, heat map, and SMD alarms |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm Linkage |
Recording, snapshot, audio, buzzer, log, preset, and email |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|

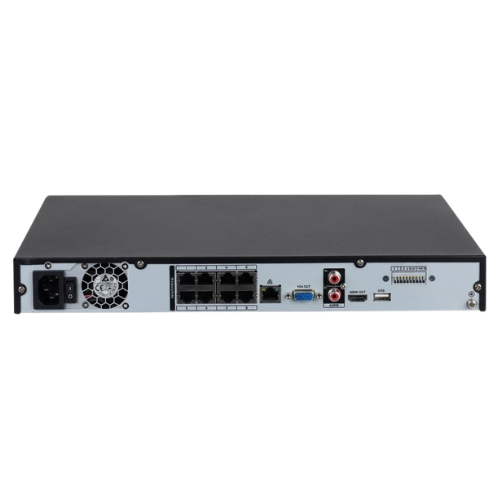

External Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Input |
1 × RCA input |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Output |
1 × RCA output |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
HDD |
2 SATA III ports, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm Input |
4 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm Output |
2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
USB |
2 (1 × front USB2.0; 1 × back USB2.0) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
HDMI |
1 (supports up to 4K resolution output) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
VGA |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network |
1 × RJ-45, 10/100/1000 Mbps self-adaptive Ethernet port |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
PoE |
8 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General Parameter |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply |
100 V–240 V, 47 Hz–63 HZ, 3.5 A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Consumption |
< 10 W (HDD not included, idling) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Net Weight |
2.51 kg (5.53 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
3.79 kg (8.36 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
375 mm × 327.4 mm × 53.8 mm (14.76" × 12.89" × 2.12") (W × L × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Package Dimensions |
170 mm × 449 mm × 421 mm (6.69" × 17.68" × 16.57") (W × L × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Conditions |
–10 °C to +55 °C (+10 °F to +131 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Conditions |
0 °C to +40 °C (32 °F to 104 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
10℅~93℅ |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Humidity |
30%~85% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Altitude |
3000 m (9842.52 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Installation |
Desktop mounted |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
CE: EN62368-1; EN55032,EN55024, EN55035, EN61000-3-2, EN61000-3-3 EN50130-4 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
