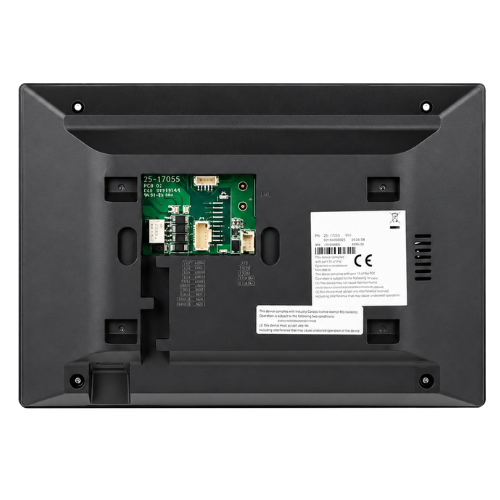

OCB-LI7430-XUD2 – 7" Capacitive Touchscreen IP Indoor Station (1024×600 TFT LCD, Standard PoE / 12V DC, 8 Alarm Inputs, Two-Way Audio, MicroSD Slot)

Product Overview

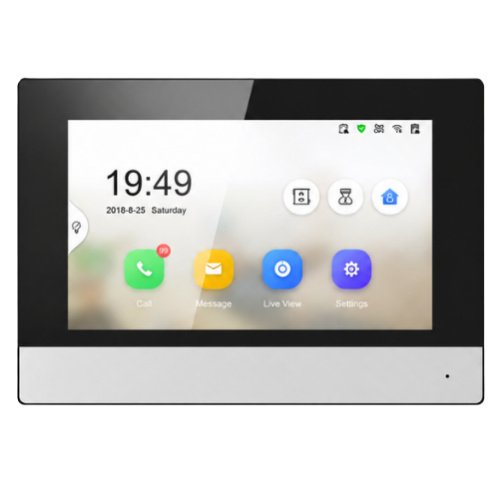

The OCB-LI7430-XUD2 is a commercial-grade 7-inch network video intercom indoor station engineered for residential multi-tenant buildings, gated communities, smart homes, and enterprise commercial offices. Featuring a high-clarity 7" capacitive touchscreen colorful TFT LCD display with a crisp 1024 × 600 resolution, the unit delivers an intuitive graphical interface for monitoring outdoor door stations, viewing linked IP security cameras in real time, answering visitor calls, and remotely releasing electronic door strikes or motorized gates.

Designed as an all-in-one residential security terminal, the station integrates an 8-channel hardwired alarm zone input array, allowing direct integration with intrusion detectors (PIR motion sensors, magnetic door contacts, smoke alarms, and panic buttons) without requiring a separate alarm panel. The unit features a full-duplex two-way audio system powered by an omnidirectional high-sensitivity microphone and built-in loudspeaker with acoustic echo cancellation and background noise suppression. Equipped with an on-board MicroSD card slot (up to 32 GB / 128 GB) for capturing visitor snapshots, message voicemails, and call logs, it supports flexible power deployment via standard IEEE 802.3af PoE over a single RJ-45 cable or local 12V DC power.

Key System Features & Functionality

• 7-Inch Capacitive Touch Display: Responsive 1024 × 600 color TFT LCD provides fluid navigation, live camera streaming, and single-touch door unlock commands.

• Seamless Door Station & IPC Integration: Live view feeds from connected outdoor video intercoms and RTSP-compatible network security cameras across the LAN.

• 8-Channel Hardwired Alarm Zones: Directly terminates up to 8 security sensor zones (PIR, reed switches, smoke/gas sensors, panic buttons) for integrated home alarm management.

• Full-Duplex Interactive Audio: Integrated omnidirectional microphone and loudspeaker with hardware echo cancellation ensure crystal-clear voice communication.

• Standard PoE (802.3af) & 12V DC: Single-cable network connection supplies both data communication and operating power, simplifying installation.

• Local Message & Snapshot Storage: Onboard MicroSD card slot stores visitor photos, missed call snapshots, and audio voicemails locally.

• SOS & Inter-Room Calling: Supports direct station-to-station room intercom calling and one-touch emergency alarm broadcasting to security master stations or guard software.

• Ultra-Slim Wall Mount Profile: Modern minimalist aesthetic with surface wall-mount bracket blends cleanly into high-end interior spaces.
