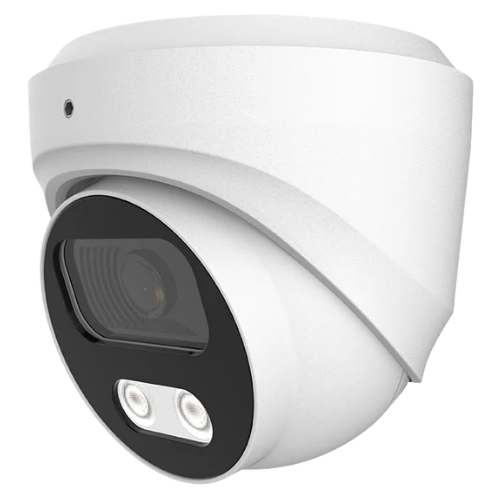

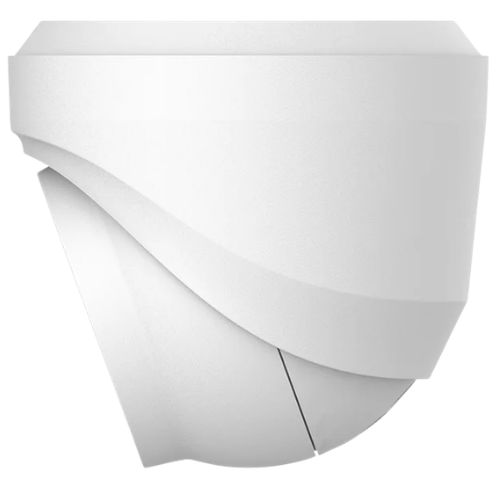

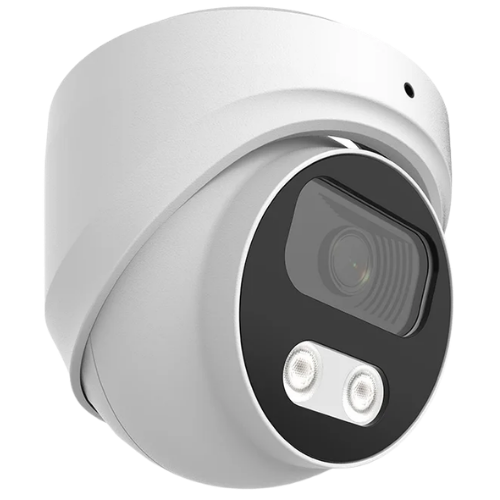

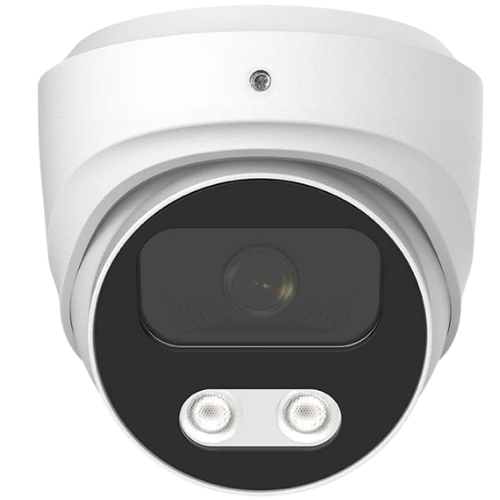

- OEM HI-D8SBFC28-DA IP Turret Camera 8MP Hybrid Smart Night Vision AI lite Mic, NDAA Compliant OEM HI-D8SBFC28-DA IP Turret Camera 8MP Hybrid Smart Night Vision AI lite Mic, NDAA Compliant
- Description
1/2.7″ CMOS sensor, Fullhan SOC, HDR, With Internal POE, Smart NightVision
Main Stream: 8MP@20fps/6MP@20fps/5MP@20fps /1080P@30fps/ 720P@30fps
Smart Analytics: Intrusion Detection (based on human shape/vehicle detection);
Built in Mic
| SPECIFICATION | |
| Model NO. | HI-D8SBFC28-DA |
| Camera | |
| Image Sensor | 1/2.7″ SmartSens CMOS sensor |
| Resolution | 8MP |
| Effective Pixels | 3872(H)*2180(V) |
| Compression | H.264/H.264+/H.265/H.265+/JPEG/AVI /MJPEG |
| Audio Compression | G711A/U,AAC |
| TV System | PAL/NTSC |
| Electronic Shutter Time | Auto: PAL 1/25-1/10000Sec; NTSC 1/30-1/10000Sec |
| Minimun Illumination | Color:0.01 Lux |
| S/N Ratio | ≥52dB |
| Scanning System | Progressive |
| Video Output | Network |
| Lens | |
| Focus Length | 2.8 mm, horizontal FOV 106°, vertical FOV 56°, diagonal FOV 127° |
| Focus Control | Fixed |
| Lens Type | Fixed |
| Pixels | 8MP |
| Night Vision | |
| Supplement Light | 38µ x 2PCS(Warm light LED 4000K),38µ x 2PCS IR LED |
| Supplement Light Distance | IR:40m, Warm light:30m |
| Supplement Light Status | Auto Control |
| Supplement Light Power On | Smart, Manual & Timed mode |
| Network | |
| Ethernet | RJ-45 (10/100Base-T) |
| Wireless | N/A |
| Protocol | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP ,PPPoE, NTP, SMTP, UDP, SNMP |
| ONVIF | Support ONVIF 2.4(Profile S/T) |
| P2P | YES |
| POE | Internal, Support IEEE 802.3af |
| Video Delay | 0.3S (Within the Lan) |
| Main Stream 1 | 3840*2160@20fps |
| Main Stream 2 | 2592*1536@20fps 2560*1440@20fps |
| Main Stream 3 | 1920*1080@20fps 1280*720@20fps |
| Sub Stream 1 | 1280*720@20fps |
| Sub Stream 2 | 720*480@20fps |
| Sub Stream 3 | / |
| Tri Stream | 1280*720@20fps 720*480@20fps |
| IE Brower | IE8-11, Google Chrome, Firefox , Mac Safari |
| Smart Phone | iPhone, Android |
| AI Function | |
| Intelligent Analysis | / |
| Camera Features | |
| Day/Night | Color/ B&W (IR-CUT ) |
| Image Config | Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK(Flicker Control), Video Tampering, HLC, Distortion |
| Full Color | / |
| Corridor Pattern | Support |
| Defog Mode | Support |
| ROI | Support |
| BLC | Support |
| WDR | HDR |
| Motion Detection | Support |
| Privacy Masking | 3 Rectangular Zone |
| Recording Mode | NVR/CMS/Web |
| Language | Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Arabic, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian,Nederlands,Czech, Vietnamese |
| Interface | |
| Audio | YES, Built-in MIC |
| Alarm | / |
| RS485 | / |
| General | |
| Housing | Metal , IP67 |
| Anti-cut Bracket | YES |
| IR Cut Filter | YES |
| Operation Temperature | -20℃ ~ +60℃ RH95% Max |
| Storage Temperature | -20℃ ~ +60℃ RH95% Max |
| Power Source | DC12V±10%, 700mA |
| Dimension | ￠109 x 93(H) mm |
| Weight | 600g |
