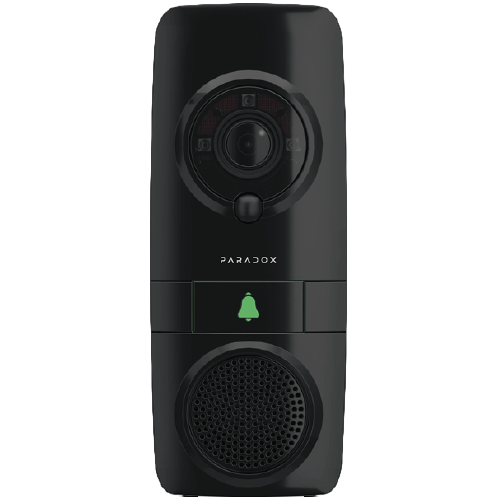

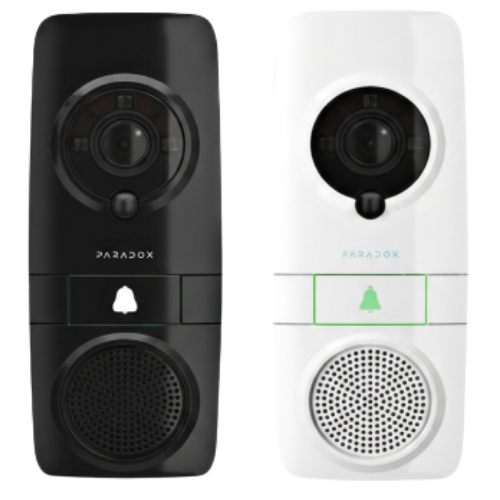

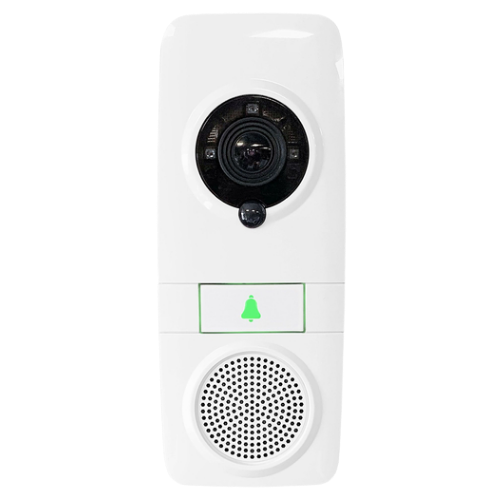

- Paradox DB7-P2C FHD Wireless Video Doorbell & Motion Detector Paradox DB7-P2C FHD Wireless Video Doorbell & Motion Detector
- Description
- Key Technical Specifications
The Paradox DB7-P2C is an integrated Full HD video doorbell and intelligent motion detection module designed to extend surveillance and access management to residential and commercial entry points. Communicating wirelessly via 2.4 GHz Wi-Fi, the DB7-P2C combines a 1080p inverted vertical camera with PIR infrared motion sensing and video signal analytics to detect approaching visitors before they even ring the chime.
Managed seamlessly through the Paradox BlueEye mobile application, the DB7 allows users to answer audio/video calls, view live video feeds 24/7, and communicate using a high-output 2.5W RMS Class D speakerphone. Fully compatible with Paradox alarm systems, it can trigger panel PGMs to unlock doors or gate access controls during live calls. Featuring an IP54/IP65 weatherproof enclosure, 256-bit TLS video encryption, 5-second pre-event cloud recording, and wall tamper protection, it provides complete perimeter control.
Key System Features & Functionality
-
Full HD Video & Night Vision: Delivers 1920x1080 resolution video with automatic IR night vision and anti-glare filtering for 24/7 visibility.
-
Dual Detection Technology: Combines a passive infrared (PIR) sensor with video image analysis to generate real-time push alerts for approaching subjects.
-
2.5W RMS Two-Way Hi-Fi Audio: Integrated Class D amplifier and high-quality speakerphone ensure crisp two-way voice conversations via mobile device.
| Parameter | Specification Details |
| Model Reference | DB7-P2C (DB7) |
| Brand / Manufacturer | Paradox Security Systems |
| Product Type | Wireless FHD Video Doorbell & PIR Motion Detector Module |
| Video Resolution | 1920 x 1080 Inverted Full HD @ 15 FPS (H.264 Compression) |
| Field of View | 155° Vertical x 94° Horizontal |
| Night Vision | IR Illumination with active IR cut filter & anti-glare detection |
| Audio Output | 2.5W RMS Class D Amplifier Speakerphone (Two-Way Hi-Fi) |
| Detection Methods | Dual Detection: PIR Infrared + Video Signal Image Recognition |
| Wi-Fi Connectivity | 2.4 GHz Wi-Fi (802.11 b/g/n) |
| System Compatibility | Paradox Panels (2017+) with IP150 / IP150+ / PCS265LTE & BlueEye App |
| Wireless Chime Option | DBC5 Indoor Wireless Chime (433 MHz - Optional) |
| Power Input Requirements | 12 to 24 VAC or DC (500 mA / 7.5W minimum) |
| Internal Backup Battery | Rechargeable Lithium-Ion (Up to 10 hours operation) |
| Ingress Protection Rating | IP54 / IP65 Weatherproof & Dustproof |
| Operating Temperature | -20°C to 45°C (-4°F to 113°F) |
| Dimensions (H x W x D) | 16.0 cm x 6.5 cm x 3.5 cm (6.3 in x 2.5 in x 1.5 in) |
| Weight | 180 g (6.3 oz) |
| Certifications & Compliance | CE, FCC, IP54/IP65 |
-
BlueEye Mobile App Integration: Manage live video, panel PGM outputs, access doors, and push notification preferences from a single mobile interface.
-
Cloud Recording with Pre-Event Buffer: Captures 5 seconds of pre-event buffer footage for every motion or ring trigger (stored up to 60 days via Swan Cloud service).
-
Optional DBC5 Wireless Chime: Supports wireless internal chime pairing (DBC5 433 MHz module) for indoor ring alerts.
