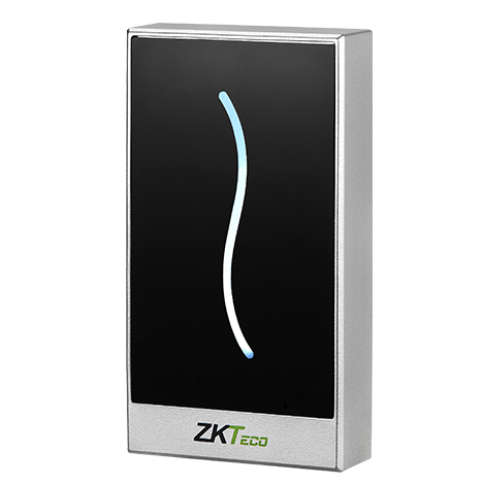

ProID Series 13.56MHz Mifare Card Reader (Wiegand 34-Bit Output, Compact Mullion Mount, Black)

Product Overview

The ProID10BM is an ultra-compact, architectural proximity card reader engineered for high-security physical access control installations requiring a minimal mounting profile. Operating at a high frequency of 13.56 MHz, this reader captures and transmits unique serial numbers (UIDs) from standard Mifare (Classic 1K/4K, S50, S70, Ultralight, and Desfire ISO 14443 Type A) smart cards, keyfobs, and mobile NFC credentials. Delivering an industry-standard Wiegand 34-bit output protocol, the ProID10BM ensures direct, seamless compatibility with modern multi-door access control panels, time & attendance terminals, and third-party security management systems.

Designed with an ultra-slim form factor measuring just 80.5 mm × 44.0 mm × 15.0 mm (3.17" × 1.73" × 0.59"), the ProID10BM is specifically tailored for narrow door mullions, aluminum storefront frames, and space-constrained architectural partitions where full-sized wall readers cannot fit. The reader features an IP65 weatherproof ingress protection rating achieved through an internally encapsulated, epoxy-potted solid-state electronic assembly encased in high-impact, UV-resistant ABS+PC polymer. It incorporates an intuitive multi-color status LED light bar (Red/Green) and an audible piezoelectric buzzer to provide positive acoustic and visual feedback during credential verification. With rapid transaction response times under 300 ms and a read range of up to 5 cm (2 inches), the ProID10BM combines high security, durability, and a clean modern aesthetic.

✅ Key Features

• 13.56MHz Mifare Smart Card Reading: Rapidly reads 13.56MHz Mifare ISO 14443A contactless smart cards, fobs, and mobile NFC tags.

• Standard Wiegand 34-Bit Output: Compatible with modern Wiegand access control controller boards, supporting 34-bit data strings for enhanced card number capacity and security.

• Ultra-Slim Mullion Profile: Compact dimensions of 80.5 × 44 × 15 mm fit standard narrow door frames, aluminum mullions, and elevator jambs.

• IP65 Certified Weatherproof Protection: Fully potted internal electronic circuitry protects against driving rain, moisture condensation, wash-down spray, and fine dust.

• Fast Verification Speed: High-speed processing engine delivers card reads in under 300 ms with an effective proximity read range up to 5 cm (2 inches).

• Multi-Color LED & Acoustic Buzzer: Clear visual indicator light bar and internal buzzer provide instant status feedback for card read, access granted, and access denied states.

• Rugged ABS+PC Construction: Impact-resistant, flame-retardant matte black casing withstands physical wear and harsh environmental exposure.

• Reverse Polarity & Surge Protection: Built-in solid-state circuit protection guards internal electronics against field wiring mistakes and power transients.

Compatible Devices

• Multi-Door Networked Access Control Panels with Wiegand Ports (such as C2-260, InBio, Atlas, and third-party controllers)

• 13.56MHz Mifare Classic 1K / 4K, Desfire, and Ultralight Contactless Smart Cards & Key Fobs

• 12V DC Centralized Access Control Power Supplies (such as the DC12V-5A UPS unit)

• 4-Core and 6-Core Shielded Security Communication Cables (such as the SF2204LE-100M series)

• Commercial Electromagnetic Locks, Drop Bolts, and High-Inrush Electric Strikes

• Narrow-Mullion Architectural Door Frames, Turnstiles, and Parking Barrier Stanchions
