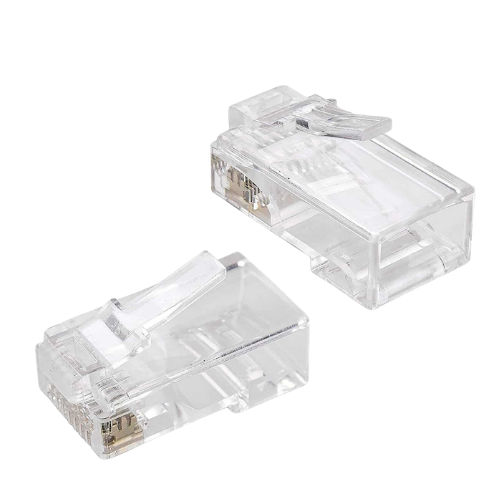

RJ45 CONNECTOR CAT5 UNARMORED EASY PUNCHING 100Pcs PACKAGE

Product Overview

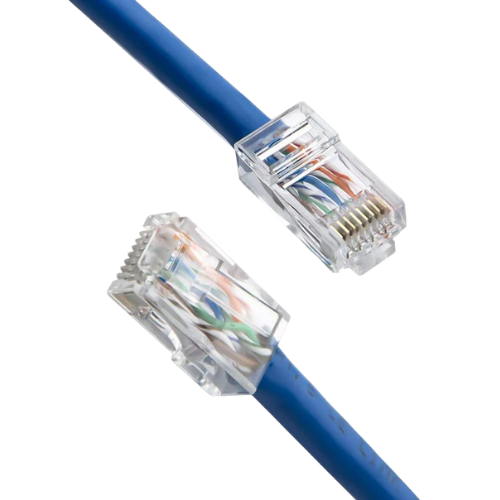

The CAT5ERJ45EZ (100-Pack) is a professional-grade set of Category 5e Unshielded Twisted Pair (UTP) pass-through 8P8C modular plugs designed for fast, accurate field terminations in commercial security, voice, and data networking installations. Featuring an EZ pass-through (feed-through / easy-punching) profile, these plugs allow all 8 conductors to extend entirely through the front face of the connector nose. This front-loading channel lets technicians inspect and confirm the TIA/EIA-568A or TIA/EIA-568B color code sequence prior to crimping, eliminating wire sequence errors, signal faults, and wasted connectors.

Constructed from high-impact, transparent flame-retardant polycarbonate (UL 94V-0), the CAT5ERJ45EZ is equipped with 3-prong contact blades finished with 50-microinch (50μ") pure gold plating over an electrolytic nickel barrier. This configuration provides secure, low-resistance mechanical termination across both solid installation cable and flexible stranded patch cord wires (24 to 26 AWG), resisting oxidation and contact degradation over time. By pulling the cable sheath deep into the plug cavity, the connector keeps pair untwisting to an absolute minimum, ensuring full compliance with Category 5e performance requirements up to 100 MHz. Fully compatible with standard EZ-style crimp tools, the plug seats contacts, secures the internal strain-relief clamp, and shears protruding excess wire flush in one continuous crimp action.

✅ Key Features

• EZ Pass-Through Open Nose: Conductors pass completely through the front of the plug, allowing quick visual confirmation of wiring sequence before crimping.

• Minimized Pair Untwist: Allows the outer cable jacket to sit deep inside the connector body, preserving twisted pair geometry to curb Near-End Crosstalk (NEXT).

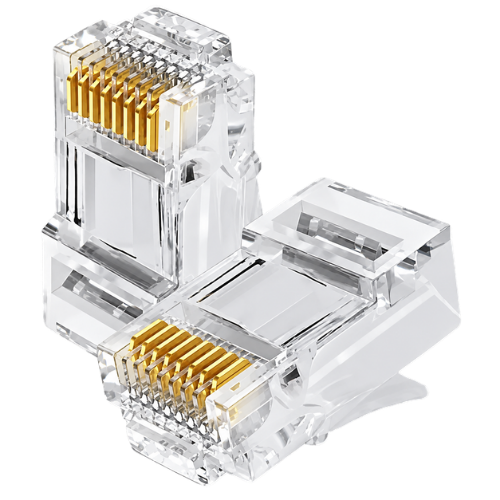

• 50μ" Gold-Plated 3-Prong Contacts: Delivers maximum electrical conductivity, minimal insertion loss, and long-term corrosion resistance for solid and stranded conductors.

• Simultaneous Crimp & Flush Shear: Compatible with standard pass-through crimpers that seat contacts, lock strain relief, and shear protruding wire ends in a single step.

• Category 5e 100 MHz Compliance: Exceeds ANSI/TIA-568.2-D Cat5e electrical requirements, supporting 100BASE-TX Fast Ethernet and 1000BASE-T Gigabit data links.

• Durable Flame-Retardant Shell: Molded from crystal-clear UL 94V-0/UL 94V-2 polycarbonate that resists cracking under heavy crimping force.

• Full PoE Support: Certified for IEEE 802.3af (PoE) and IEEE 802.3at (PoE+) applications without contact heating or signal interruption.

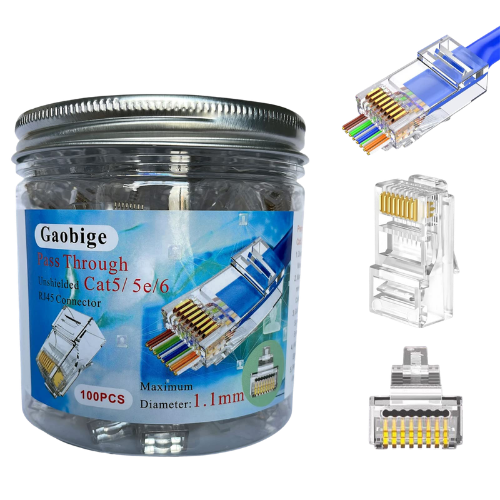

• Contractor 100-Piece Value Pack: Supplied in a durable, resealable polybag suited for daily jobsite use, toolbox storage, and high-volume drops.

Compatible Devices

• Bulk Category 5e and Category 5 UTP Solid and Stranded Cables (24–26 AWG, such as EPCAT5EV2-W)

• Standard Pass-Through / EZ RJ45 Crimp and Cut Hand Tools

• HD Analog CCTV Video Baluns and Transceivers requiring RJ45 plug patch leads

• IP Network Surveillance Cameras (such as IPF-B14M-A-28, dome, and bullet models)

• Fast Ethernet and Gigabit PoE Network Switches (such as LP-SG642FP)

• Multi-Channel DVRs and Hybrid XVRs (such as DH-XVR1B16-I and DHI-XVR5108HS-I3-V3)

• 19-Inch 1U 24-Port and 48-Port Keystone Patch Panels (such as NTBP24UP)

• Surface-Mount Boxes and Modular Faceplates (such as NTFP01LWH, NTFP02LWH, and NTMB01LWH)
