Forza Smart Interactive UPS 600VA / 360W 120V (Boost & Buck AVR, 8 NEMA 5-15R Outlets, Coaxial/Data Line Protection, LCD Display, USB Monitoring Port, UL Certified, Black)

Product Overview

The SL-601UL is an enterprise-grade smart line-interactive Uninterruptible Power Supply (UPS) manufactured by Forza Power Technologies under the SL Series (Smart Level). Purpose-built to protect video surveillance recording systems (NVRs, DVRs, XVRs), PoE network switches, IP communication gear, point-of-sale (POS) terminals, and workstation PCs, this unit delivers uninterrupted clean battery power alongside active multi-stage voltage stabilization. Designed for 120V AC (50/60 Hz) electrical networks, the SL-601UL provides a continuous output capacity of 600VA / 360 Watts, keeping mission-critical security hardware operational through total blackouts, severe voltage sags, brownouts, and electrical surges.

Equipped with Boost and Buck Automatic Voltage Regulation (AVR), the SL-601UL continuously stabilizes fluctuating utility voltages to ensure consistent power delivery without cycling into battery mode, thereby preserving battery life for true outages. The rear interface is configured with 8 NEMA 5-15R receptacles, divided into 4 battery backup plus surge-protected outlets and 4 surge-only bypass outlets for non-critical peripherals. The unit includes comprehensive line protection with dedicated RJ45/RJ11 network/phone surge ports and coaxial cable protection, as well as a front-panel interactive LCD screen showing real-time load levels, battery runtime, input/output voltage, and AVR status. Backed by UL 1778 certification, a built-in USB communications port for automated system shutdown via ForzaTracker software, and cold-start capability, the SL-601UL delivers complete security system power resilience.

Key System Features & Functionality

• Line-Interactive Topology with Boost & Buck AVR: Dynamically corrects under-voltage and over-voltage fluctuations, delivering a stable 120V output without depleting battery reserves.

• 600VA / 360W Reliable Power Capacity: Keeps central surveillance recorders, access controllers, and networking hardware online during blackouts and brownouts.

• 8 Total NEMA 5-15R Outlets: Features 4 battery backup + surge-protected receptacles for critical equipment and 4 surge-only bypass receptacles for non-essential accessories.

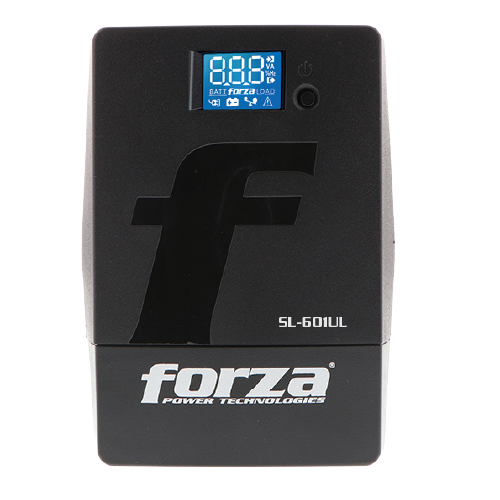

• Interactive Front-Panel LCD Display: Provides real-time metrics for input/output voltage, battery capacity percentage, connected load level, and operating mode.

• Data & Coaxial Line Surge Protection: Shielded RJ45/RJ11 data ports and coaxial connectors isolate surveillance cameras, network lines, and modems from transient back-door surges.

• USB Communication & ForzaTracker Software: USB port pairs with management software for automated graceful shutdown, real-time logging, and scheduled self-tests.

• Cold-Start Functionality: Enables operators to manually boot up connected equipment directly from the UPS battery during a complete absence of utility mains power.

• UL 1778 Certified Safety: Rigorously tested and certified to North American safety standards, featuring flame-retardant housing and thermal overload circuit protection.
