Smart Single-Door IP Access Controller & Multi-Technology Reader

Product Overview

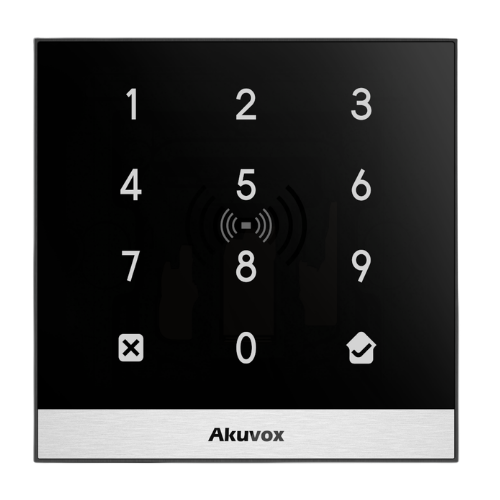

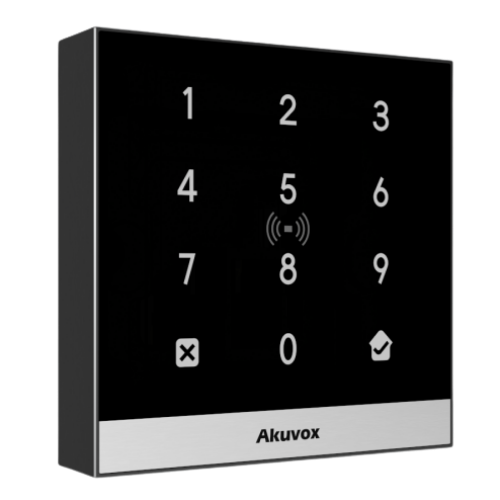

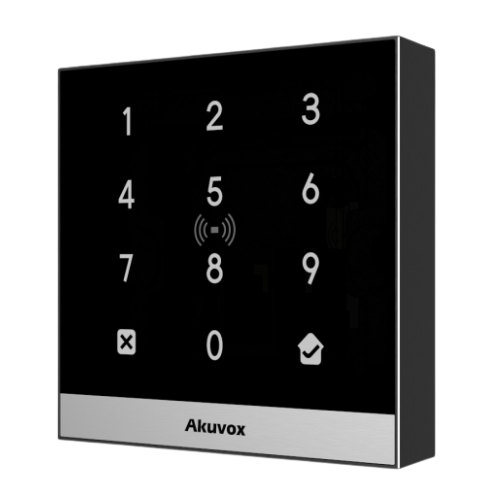

The A02 is a compact, high-performance single-door IP access controller with an integrated touch keypad and multi-technology RFID/NFC reader module. Engineered for secure commercial offices, residential complexes, and restricted facilities, it combines door controller intelligence and reader functionality into a sleek, space-saving wall-mount device.

Featuring native support for 125 kHz Proximity, 13.56 MHz Mifare, and NFC/Bluetooth mobile credentials, the A02 provides flexible authentication via PIN code, RFID card, or smartphone app. Built-in embedded web management allows administrators to configure access rights, user profiles, time schedules, and view event logs directly through any web browser without requiring dedicated server software.

Key System Features & Functionality

• All-in-One Controller & Reader: Integrates door relay controller, backlit keypad, and card reader into a single standalone device for 1-door access control.

• Multi-Technology Credential Support: Supports 125 kHz EM Proximity cards, 13.56 MHz ISO14443A Mifare cards, NFC, and Bluetooth mobile credential access.

• Embedded Web Server Management: Standalone web GUI enables full configuration, user badge administration, access schedules, and real-time event log tracking via web browser.

• Multiple Authentication Modes: Supports Card Only, PIN Only, Card + PIN multi-factor authentication, or Mobile App access.

• PoE & Standalone Network Capability: Powered via Power over Ethernet (PoE 802.3af) or 12 VDC, reducing cabling requirements during installation.

• Door Hardware Interfaces: Includes door lock relay output (NO/NC/COM), door status sensor input, request-to-exit (REX) button input, and tamper switch alarm.
