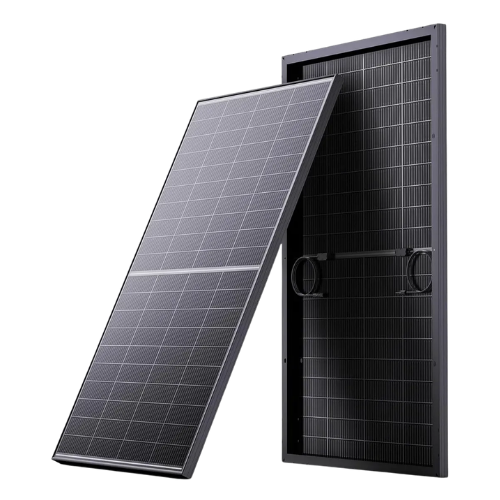

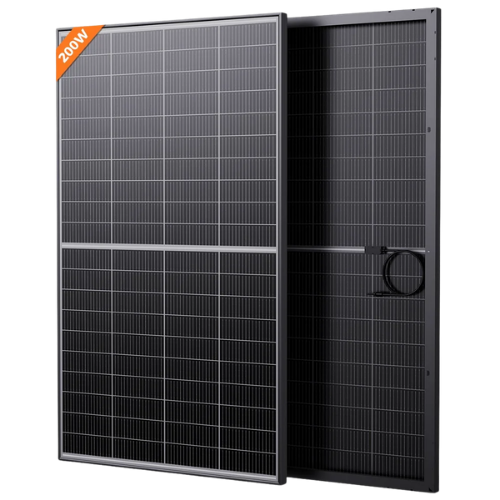

SOLAR200W – 200W 12V High-Efficiency Bifacial Monocrystalline Solar Panel (Dual-Glass PV Module for Sunshed & Off-Grid)

Product Overview

The SOLAR200W Bifacial Solar Panel is an advanced photovoltaic module engineered for high-performance off-grid power generation across remote physical security stations, perimeter surveillance poles, agricultural sunsheds, telecommunications repeaters, and off-grid battery backup arrays. Utilizing state-of-the-art bifacial monocrystalline PERC / N-Type solar cells, this module captures direct solar irradiance on its front face while absorbing reflected ambient albedo and scattered light from its transparent rear surface, generating up to 25% additional energy yield compared to conventional single-sided panels.

Designed with an ultra-durable dual-tempered glass architecture and an anodized aluminum frame, the SOLAR200W withstands heavy mechanical loads, high wind speeds, and severe environmental conditions without micro-cracking or moisture ingress. Operating at a nominal 12V system standard (with an open-circuit voltage optimized for MPPT and PWM charge controllers), it delivers superior low-light performance on overcast days and in shaded mounting conditions. Pre-wired with an IP68 waterproof junction box, integrated bypass diodes to mitigate hotspot effects, and standard solar PV output cables terminating in MC4-compatible quick connectors, it provides an efficient, clean energy solution for perimeter security infrastructure and off-grid sunshed installations.

✅ Key Features

• 200W High-Efficiency Monocrystalline Cells: Premium Grade-A solar cells deliver high conversion efficiency (> 21%) in a compact, manageable footprint.

• Bifacial Dual-Surface Energy Harvest: Transparent rear glass design captures ground albedo and reflected light, providing up to a 10%–25% extra power boost.

• Nominal 12V DC Battery Charging: Ideal electrical characteristics for direct integration with 12V and 24V deep-cycle battery banks (Lithium LiFePO4 or AGM/GEL).

• Dual-Glass / Heavy-Duty Aluminum Frame: Rugged dual-glass construction encased in a corrosion-resistant anodized aluminum alloy frame ensures structural rigidity and long service life.

• Anti-Reflective Tempered Glass: Low-iron toughened front glass maximizes photon absorption and resists hail, windblown debris, and physical impacts.

• IP68 Weatherproof Junction Box: Sealed rear junction box equipped with integrated bypass diodes prevents cell overheating and minimizes power loss from partial shading.

• Pre-Installed Solar Leads with MC4 Connectors: Comes factory-fitted with dedicated UV-resistant PV output cables and polarized, lockable MC4-compatible connectors.

• High Mechanical Load Rating: Certified to withstand heavy snow loads up to 5400 Pa and extreme wind loads up to 2400 Pa.

Compatible Devices

• MPPT and PWM Solar Charge Controllers (12V/24V 20A–30A models)

• 12V Deep-Cycle Sealed Lead-Acid (SLA), Gel, and Lithium Iron Phosphate (LiFePO4) Battery Banks

• Remote Solar-Powered 4G/LTE CCTV Cameras and Wireless Edge Surveillance Systems

• Weatherproof Outdoor Battery Cabinets (such as the 300×400×200mm Outdoor Metal Cabinet)

• Heavy-Duty Side-of-Pole and Ground/Roof Mounting Racks (such as the SOLARBRK bracket series)

• Off-Grid DC-to-AC Pure Sine Wave Power Inverters (300W to 1500W)

• Standard 4mm² (12 AWG) UV-Resistant Solar Extension Cables and MC4 Branch Connectors
