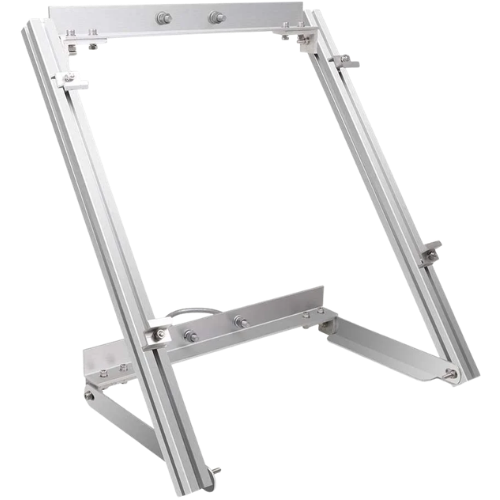

SOLARBRK – Side-of-Pole Solar Panel Mounting Bracket for 50W to 100W Panels (Heavy-Duty Aluminum/Steel, Mount Only)

Product Overview

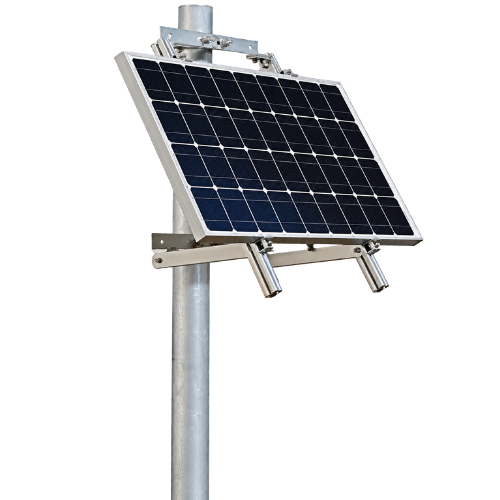

The SOLARBRK Side-of-Pole Mounting Bracket is an engineered hardware mounting assembly designed to support and position off-grid photovoltaic panels on cylindrical utility poles, masts, and structural pipes. Engineered specifically for 50W to 100W monocrystalline and polycrystalline solar panels, this mounting system is an essential infrastructure component for remote outdoor wireless stations, solar-powered CCTV cameras, IoT environmental sensors, perimeter lighting, and off-grid traffic telemetry.

Manufactured from corrosion-resistant anodized aluminum alloy (AL6005-T5) and hot-dip galvanized steel, the SOLARBRK is designed to withstand harsh outdoor exposure, heavy wind loads, and marine/salt-fog environments without structural degradation. It features an adjustable tilt-angle mechanism (typically 1° to 45°), enabling technicians to optimize the seasonal incidence angle of solar irradiation for maximum energy harvest. Equipped with high-tensile stainless steel U-bolts and worm-gear hose clamp bands, the mount securely grips round poles ranging from 2 inches to 4 inches (50 mm to 100 mm) in outer diameter, providing a rigid, vibration-resistant foundation for perimeter and rural deployments.

✅ Key Features

• Optimized for 50W–100W Panels: Tailored cross-arm and bracket spacing engineered specifically for standard aluminum-framed 50W to 100W solar modules.

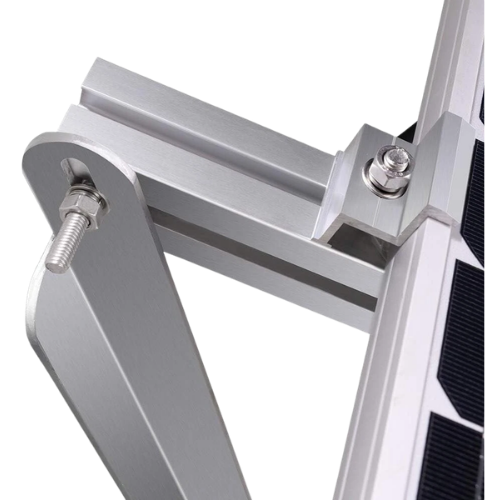

• Adjustable Tilt Elevation Angle: Articulating arm allows multi-position angle adjustments ($15^\circ$ to $45^\circ$) to maximize seasonal solar capture efficiency.

• Corrosion-Resistant Construction: Built from weather-treated anodized structural aluminum and heavy-duty galvanized steel to prevent rust and galvanic corrosion.

• Universal Pole Clamp Compatibility: Accommodates standard cylindrical poles, antenna masts, and street-light posts with diameters from 2" to 4" (50–100 mm).

• Stainless Steel Fasteners Included: Complete hardware kit includes anti-rust SUS304 bolts, washers, nylon locknuts, and heavy-duty steel clamps.

• High Wind-Load Resistance: Engineered to maintain structural integrity and panel stability in sustained winds up to 100 mph (160 km/h).

• Hardware-Only Solution: Focuses strictly on mechanical framing, giving installers complete freedom to select their preferred panel brand and solar charge controller.

Compatible Devices

• 50W, 60W, 80W, and 100W Monocrystalline and Polycrystalline Framed Solar Panels

• Outdoor Solar-Powered 4G/LTE IP Bullet & PTZ Cameras

• Weatherproof Outdoor Battery & Controller Cabinets (such as the 300×400×200mm Outdoor Metal Cabinet)

• Wireless Point-to-Point (PtP) and Point-to-Multipoint (PtMP) Outdoor Bridges

• 2-Inch to 4-Inch Diameter Round Steel Utility Poles and Masts

• MPPT and PWM Solar Charge Controllers (10A / 20A models)
