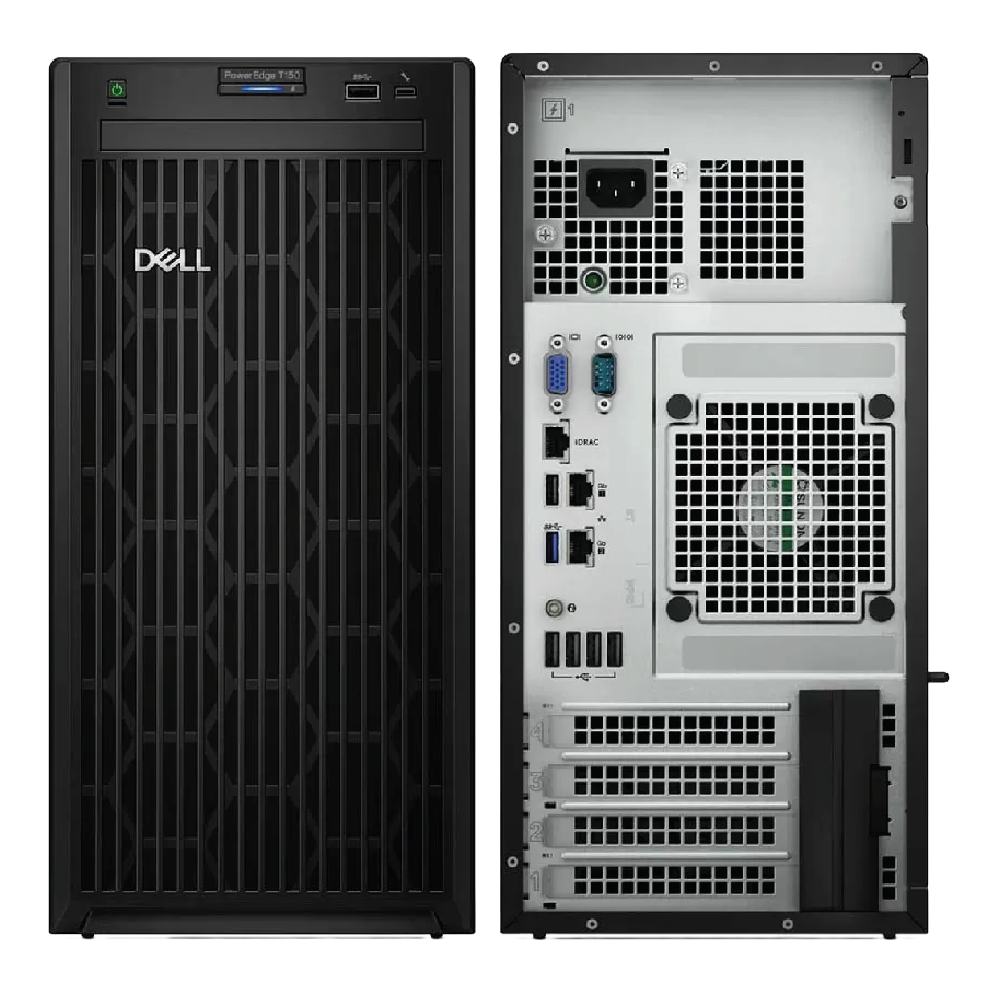

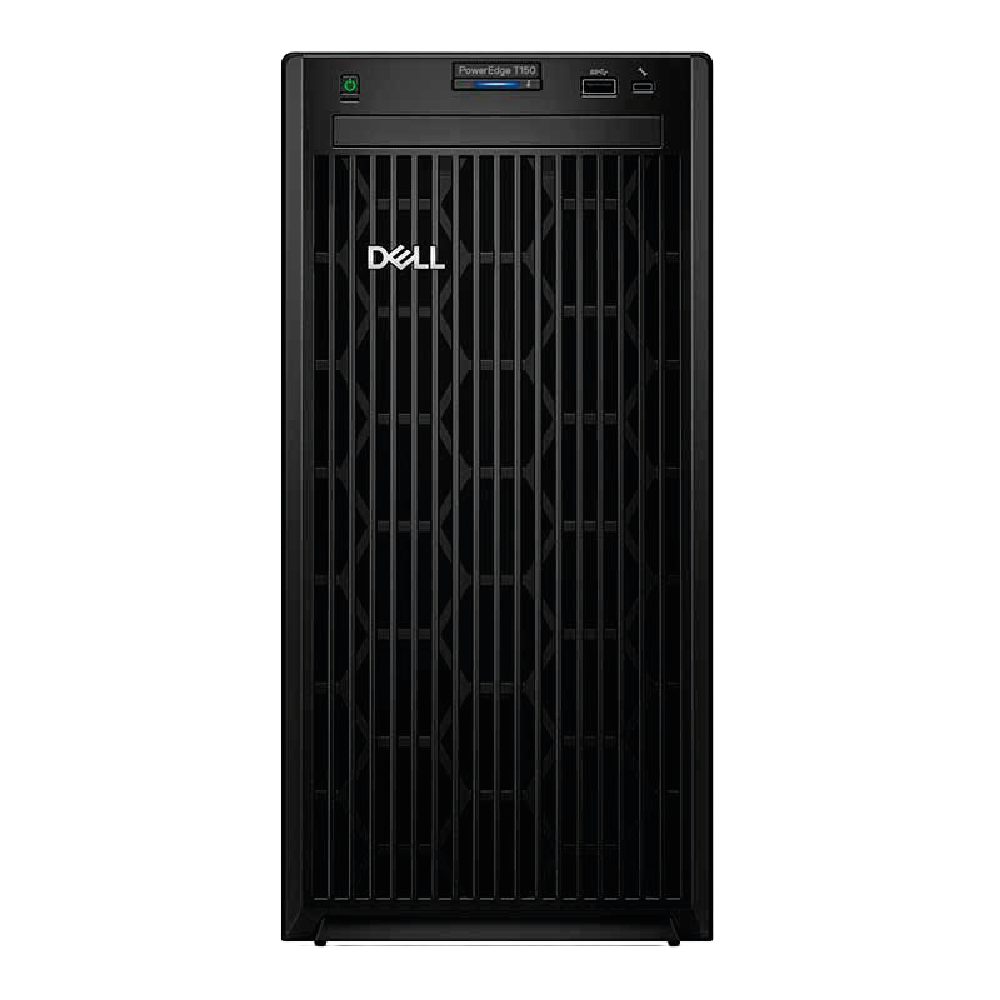

Dell PowerEdge T150 Tower Server (Intel Xeon E-2324G 4C/4T 3.1GHz up to 4.6GHz, 16GB DDR4 ECC UDIMM, 1TB 7.2K SATA 3.5" HDD, Dual 1GbE LOM, iDRAC9 Basic/Express 15G, 300W Bronze PSU, Cabled 4U Mini-Tower)

Product Overview

The T150-FY25Q3E is an enterprise-grade 1-socket entry-level tower server belonging to the Dell EMC PowerEdge 15G generation. Purpose-built for security operations centers (SOCs), centralized video management software (VMS servers such as Milestone XProtect, DSS Pro, HikCentral), access control database hosts, on-premises video surveillance archiving, and small-to-medium enterprise IT infrastructure, this server delivers dedicated 24/7 reliability, hardware error correction, and remote management within an acoustically quiet 4U mini-tower form factor.

Powered by an Intel Xeon E-2324G processor (4 cores / 4 threads, 3.10 GHz base clock, up to 4.60 GHz Max Turbo frequency, 8MB Intel Smart Cache, 65W TDP) built on the Intel C256 server chipset, this unit provides responsive computing throughput for continuous multi-channel video ingestion, database indexing, and user credential validation. It comes configured with 16GB DDR4-3200 MT/s ECC UDIMM memory (expandable up to 128GB across 4 DIMM slots) to eliminate soft memory errors and prevent system crashes during 24/7 recording cycles. Local storage is handled by an enterprise-class 1TB 7,200 RPM SATA 6Gbps 3.5-inch cabled hard drive, with internal chassis expansion supporting up to 4 × 3.5-inch cabled drives (up to 30.72TB total raw storage) managed by Dell PERC RAID architecture. The T150 integrates dual Gigabit Ethernet LAN ports (Broadcom 5720 LOM), next-generation PCIe Gen 4 expansion slots, an integrated iDRAC9 15G controller for remote out-of-band server diagnostics, and an 80 PLUS Bronze certified 300W cabled power supply.

Key System Features & Functionality

• Server-Grade Intel Xeon E-2324G Processor: 4 Cores / 4 Threads clocking up to 4.60 GHz with 8MB Cache, engineered specifically for sustained 24/7 multi-camera processing, database operations, and virtualization workloads.

• 16GB DDR4-3200 ECC UDIMM Memory: Error-Correcting Code (ECC) RAM detects and corrects data corruption in real time; 4 memory slots support expansion up to 128GB.

• Expandable 4-Bay Storage Architecture: Ships with a 1TB 7.2K SATA enterprise drive, supporting up to 4 × 3.5" cabled SAS/SATA HDDs/SSDs for expansive video retention arrays.

• Integrated Dell iDRAC9 15G Remote Management: Embedded server intelligence allows administrators to monitor hardware health, update firmware, and troubleshoot remotely without requiring an active OS.

• Dual Gigabit Ethernet LOM: Embedded Broadcom 5720 dual-port 1GbE controller provides network redundancy, link aggregation, or dedicated camera/client subnet isolation.

• PCIe Gen 4 High-Throughput Expansion: 4 PCIe expansion slots (including PCIe 4.0 x16 and x4) allow easy addition of dedicated hardware RAID controllers (PERC H345/H755), fiber optic NICs, or surveillance capture cards.

• Acoustically Quiet 4U Mini-Tower Chassis: Designed for quiet office, back-room, or security control desk operation without the high fan noise of traditional rackmount servers.

• Hardware Root of Trust & Cyber Resiliency: Built-in cryptographically signed firmware, Secure Boot, System Lockdown, and TPM 2.0 protect against malicious code injection and physical tampering.
