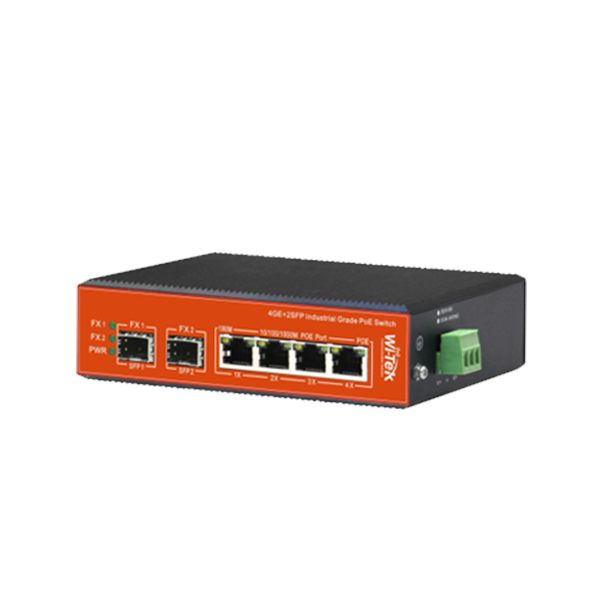

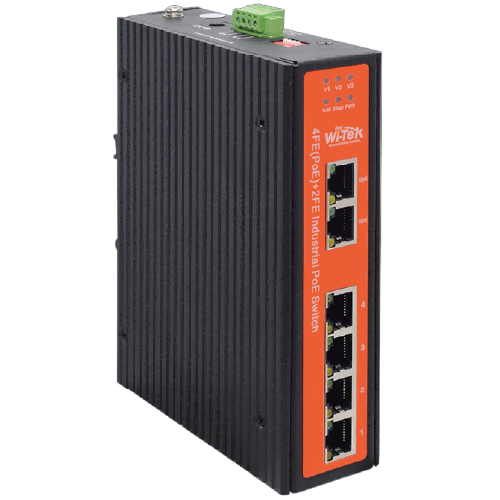

Wi-Tek WI-PS206-I 4-Port Fast Ethernet Industrial PoE Switch with Dual Uplinks (1800W Total Capacity / 180W Budget)

The Wi-Tek WI-PS206-I is a heavy-duty, industrial-grade 6-port Fast Ethernet unmanaged PoE switch engineered for extreme thermal environments, critical CCTV surveillance networks, and industrial automation setups. Outfitted with 4 10/100Mbps PoE output ports compliant with IEEE 802.3af/at/bt standards alongside 2 dedicated 10/100Mbps uplink ports, it ensures dependable, uninterrupted data backhaul to NVRs and central control switches.

Designed with an extended industrial operating temperature range (-40°C to 80°C) and a rugged IP40 aluminum chassis, the WI-PS206-I delivers a high PoE power budget of up to 180W (supporting Hi-PoE/60W output for PTZ cameras). It features hardware DIP switches for PoE Watchdog (auto-rebooting frozen IP devices), 250m Extend Mode (Port 1-2 or Port 1-4), and Port Isolation (VLAN mode), alongside 6kV surge protection and redundant dual DC power inputs (48V–57V).

Key System Advantages

• Industrial-Grade Thermal Range (-40°C to 80°C): IP40-rated fanless metal housing engineered to perform in extreme thermal and dusty industrial environments.

• PoE Watchdog Intelligent Auto-Healing: Hardware AI Watchdog continuously monitors connected IP cameras and automatically reboots unresponsive ports.

• 250m Extended Transmission Range: DIP-switch selectable Extend Mode supplies power and data over long cable runs up to 250 meters at 10Mbps.

• High Power Output (Up to 180W Budget / 60W Hi-PoE): Delivers up to 60W on high-power PoE ports for heavy-duty PTZ dome cameras and industrial terminals.

• Redundant Dual Power Inputs & 6kV Protection: Equipped with dual DC power terminal blocks for continuous power uptime and 6kV surge/ESD immunity.

Technical Specifications
