Wi-Tek WI-AP520AX-D AX5400 Dual-Band Outdoor Wi-Fi 6 Directional Access Point with 2.5G SFP Slot

The Wi-Tek WI-AP520AX-D is an ultra-high-performance, industrial-grade AX5400 dual-band Wi-Fi 6 (802.11ax) outdoor wireless Access Point designed for high-density, long-range directional coverage across stadiums, logistics hubs, outdoor venues, industrial plants, and commercial corridors. Delivering concurrent dual-band wireless speeds of up to 5400 Mbps (574 Mbps on 2.4 GHz + 4804 Mbps on 5 GHz), it leverages 4x4 MU-MIMO, OFDMA, and 160MHz channel bandwidth to handle hundreds of concurrent high-throughput connections with minimal latency.

Outfitted with integrated high-gain directional antennas, the WI-AP520AX-D focuses RF energy precisely over long distances while suppressing off-axis co-channel interference. For high-speed backhaul, it features a 2.5G Multi-Gigabit Ethernet PoE port alongside a 2.5G SFP optical fiber slot, ensuring wired link speeds never bottleneck Wi-Fi 6 throughput. Housed in a heavy-duty IP67 waterproof and dustproof UV-stabilized enclosure with 6kV surge armor, it supports standard 802.3at PoE and integrates with the Wi-Tek Cloud Management Platform for zero-touch deployment, self-healing Smart Mesh, captive portals, and 802.11k/v/r fast roaming.

Key System Advantages

• AX5400 Ultra-Fast Wi-Fi 6 Performance: Combined wireless speeds up to 5400 Mbps (574 Mbps @ 2.4 GHz + 4804 Mbps @ 5 GHz) with 160MHz channel support for bandwidth-heavy application streaming.

• Integrated High-Gain Directional Antennas: Focused beam pattern drives high-throughput wireless coverage over extended distances while blocking lateral interference.

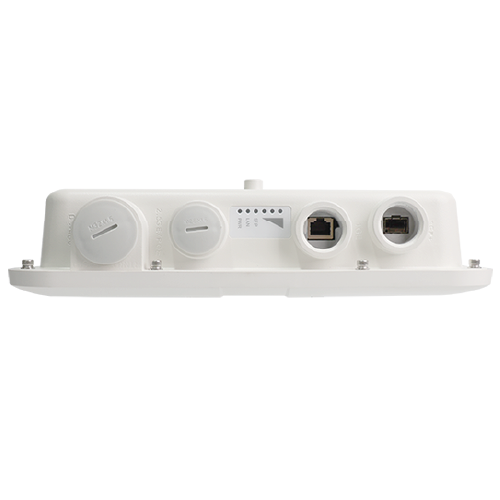

• Dual 2.5G High-Speed Backhaul (2.5G Ethernet + 2.5G SFP): 2.5Gbps Multi-Gigabit PoE RJ45 port + 2.5Gbps SFP optical fiber slot prevent wired network bottlenecks.

• IP67 Extreme Outdoor Weatherproof Enclosure: UV-resistant chassis engineered to operate continuously in extreme rain, snow, heat, and high-dust outdoor environments.

• Wi-Tek Cloud Remote Control: Centralized management enables real-time network monitoring, captive portal management, batch firmware updates, and topology mapping via web or app.
