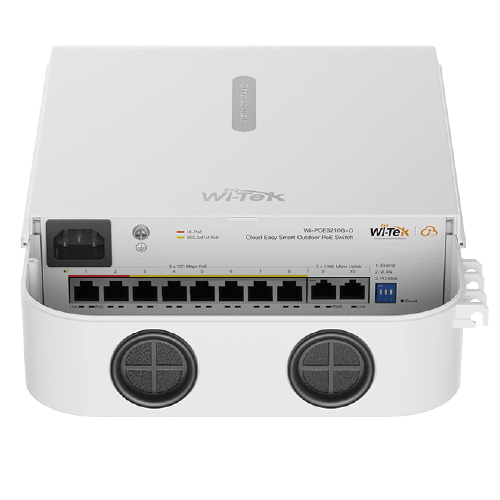

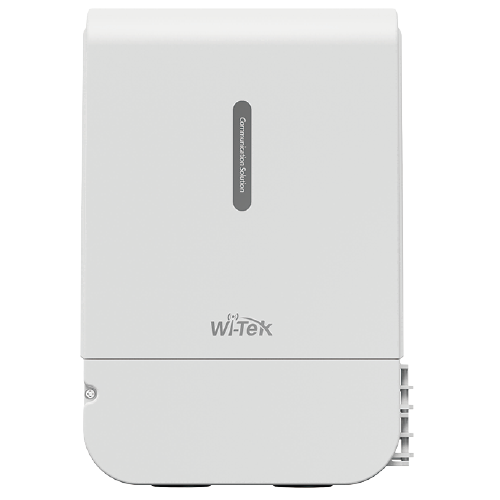

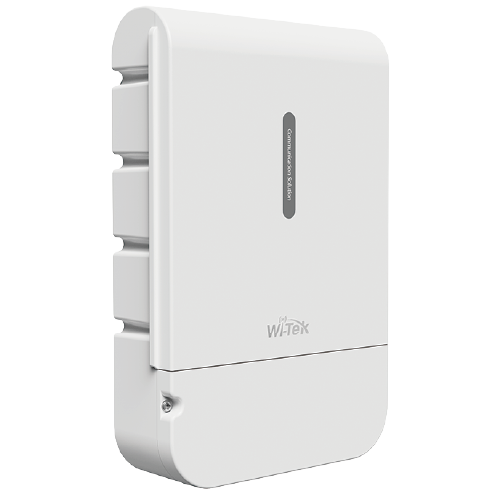

Wi-Tek WI-PCES210G-O Outdoor 8-Port Fast Ethernet Solar/Battery PoE Switch with Dual Gigabit Uplinks (102.4W Budget / IP65)

The Wi-Tek WI-PCES210G-O is a heavy-duty, all-weather 10-port outdoor PoE switch purpose-built for off-grid solar-powered stations, remote CCTV surveillance, and outdoor wireless infrastructure. Featuring 8 10/100Mbps PoE output ports compliant with IEEE 802.3af/at standards alongside 2 dedicated 10/100/1000Mbps Gigabit RJ45 uplink ports, it ensures bottleneck-free transmission when sending video streams back to central NVRs or wireless point-to-point bridges.

Engineered specifically for solar and battery environments, the WI-PCES210G-O accepts a wide DC power input range (DC 12V–48V) and intelligently boosts output voltage to deliver standard 48V PoE across all 8 camera ports with a total power budget of up to 102.4W (up to 30W per port). Encased in an IP65-rated weatherproof housing, it features hardware DIP switches for 250m Extend Mode and Port Isolation (VLAN mode), along with integrated 6kV surge protection to guard connected edge hardware from power transients.

Key System Advantages

• IP65 Weatherproof Protection: Industrial-grade UV-stabilized outdoor casing operates directly in extreme weather without needing extra junction boxes.

• Solar & Battery Direct DC Input (12V–48V): Integrated voltage boost converter accepts 12V/24V solar controller or battery power and boosts it to standard 48V PoE output.

• Dual Gigabit Uplink Ports: 2x 10/100/1000Mbps RJ45 uplink ports ensure high-bandwidth connectivity to backend NVRs and wireless bridges.

• 102.4W Total PoE Power Budget: Delivers up to 30W per port (IEEE 802.3af/at) across 8 PoE ports to power outdoor IP cameras and wireless access points.

• 250m Extended Transmission Range: DIP switch enables CCTV/Extend Mode to supply PoE power and video data over extended cable runs up to 250 meters at 10Mbps.

Technical Specifications
