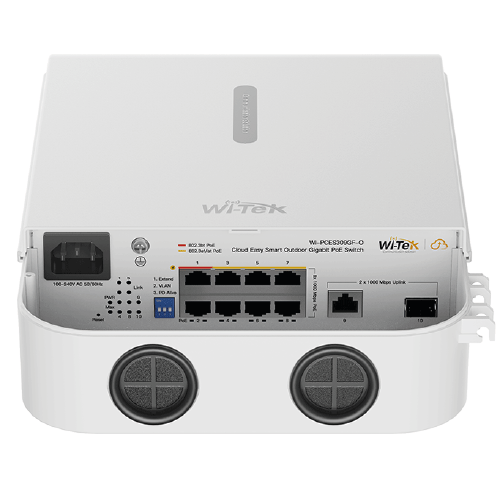

Wi-Tek WI-PCES309GF-O Outdoor 10-Port All-Gigabit Solar Cloud PoE Switch with 2 SFP Slots (120W Budget / IP65)

The Wi-Tek WI-PCES309GF-O is a specialized, industrial-grade 10-port All-Gigabit outdoor Cloud Easy Smart PoE switch purpose-built for off-grid solar-powered stations, fiber optic backhauls, and outdoor IP CCTV networks. Featuring 8 Gigabit 10/100/1000Mbps RJ45 PoE+ ports compliant with IEEE 802.3af/at standards alongside 2 dedicated Gigabit SFP optical slots, it enables high-speed, interference-free fiber links back to central NVRs or core switches.

Designed for solar, battery, and DC-powered environments, the switch accepts a wide DC input range (DC 12V–48V) and intelligently boosts output voltage to deliver standard 48V PoE across all 8 camera ports with a total power budget of up to 120W (up to 30W per port). Housed in an IP65 weatherproof and UV-resistant enclosure, it integrates with the Wi-Tek Cloud Management Platform, giving network administrators remote status monitoring, real-time power consumption tracking, remote port reboot controls, and network topology mapping via mobile app or web browser.

Key System Advantages

• Solar & Battery Direct DC Input (12V–48V): Integrated voltage boost converter accepts 12V/24V solar charge controller or battery power and boosts it to standard 48V DC PoE output.

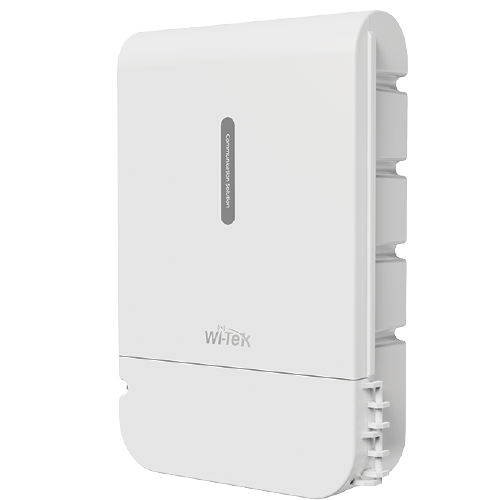

• IP65 Outdoor Weatherproof Enclosure: Heavy-duty, UV-stabilized outdoor casing designed for direct pole or wall mounting in extreme weather conditions.

• Dual Gigabit SFP Fiber Uplinks: 2 independent 1000Mbps SFP slots enable long-distance, noise-immune optical connections to central control rooms.

• 120W Total PoE Power Budget: Delivers up to 30W per port (IEEE 802.3af/at) across 8 Gigabit ports to power outdoor PTZ cameras, wireless access points, and CPE bridges.

• Wi-Tek Cloud Management Integration: Remotely monitor port status, power load, reboot frozen camera ports, and manage network topology maps anywhere via cloud or app.

Technical Specifications
