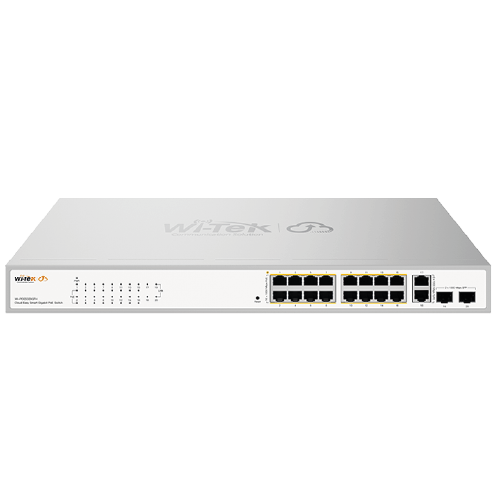

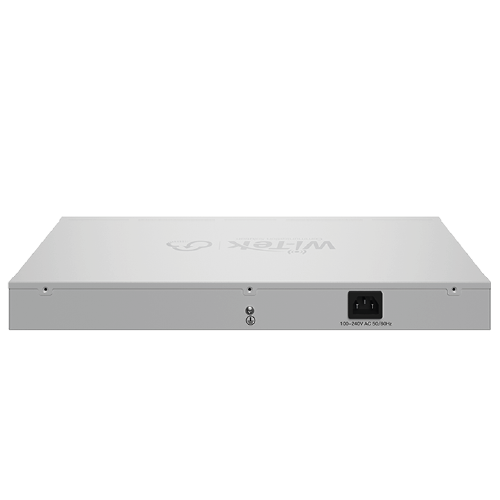

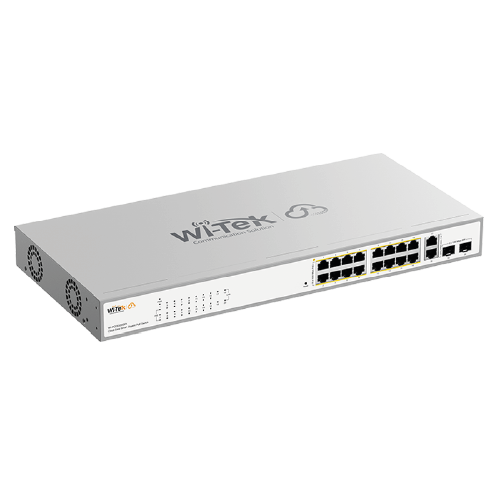

- Wi-Tek WI-PCES320GFH 20-Port All-Gigabit Solar/DC Cloud Easy Smart PoE Switch (16x PoE+ / 2x RJ45 Uplinks / 2x SFP Slots) Wi-Tek WI-PCES320GFH 20-Port All-Gigabit Solar/DC Cloud Easy Smart PoE Switch (16x PoE+ / 2x RJ45 Uplinks / 2x SFP Slots)
- Description
The Wi-Tek WI-PCES320GFH is a high-density, enterprise-grade 20-port All-Gigabit Cloud Easy Smart PoE switch purpose-built for off-grid solar-powered stations, large-scale CCTV surveillance setups, and high-bandwidth wireless network infrastructure. Outfitted with 16 Gigabit 10/100/1000Mbps RJ45 PoE+ ports compliant with IEEE 802.3af/at standards (up to 30W per port) alongside 2 dedicated Gigabit RJ45 copper uplink ports and 2 Gigabit SFP fiber slots, it offers flexible, non-blocking backhaul options over copper cables or noise-immune optical links.
Designed specifically for DC-powered and solar environments, the WI-PCES320GFH accepts a wide DC power input range (DC 12V–48V) and intelligently boosts output voltage to supply standard 48V PoE across all 16 camera ports with a high power budget. Built into a 19-inch steel rackmountable chassis with integrated 6kV surge protection, it connects directly with the Wi-Tek Cloud Management Platform for remote power load monitoring, port status diagnostics, remote device rebooting, and topology mapping via web browser or mobile app.
Key System Advantages
-
16 All-Gigabit PoE+ Ports (IEEE 802.3af/at): Delivers up to 30W per port across 16 Gigabit RJ45 ports to power multi-camera security arrays and outdoor wireless access points.
-
Solar & Battery Direct DC Input (12V–48V): Integrated voltage boost converter accepts 12V/24V solar charge controller or battery power and boosts it to standard 48V DC PoE output.
-
Dual Gigabit RJ45 Uplinks + Dual SFP Slots: 2x Gigabit copper uplinks and 2x Gigabit SFP fiber slots provide high-speed, flexible backhaul connectivity to core switches and NVRs.
-
Wi-Tek Cloud Management Integration: Remotely monitor power load, execute remote port restarts, track real-time device health, and view full topology maps anywhere via cloud or app.
-
19-Inch Steel Rackmount Build & 6kV Surge Armor: Heavy-duty metal chassis designed for standard rack installation with integrated surge protection to shield core equipment from power spikes.
Technical Specifications
| Specification Category | Technical Details |
| Model | WI-PCES320GFH |
| Network Interfaces | 16 x 10/100/1000Mbps PoE RJ45 Ports + 2 x Gigabit Uplink RJ45 Ports + 2 x Gigabit SFP Slots |
| PoE Standards & Power | IEEE 802.3af / IEEE 802.3at Compliant (Up to 30W per port on Ports 1–16) |
| Power Input Range | DC 12V ~ 48V Wide Voltage Input (Solar / Battery Compatible) |
| PoE Output Voltage | Standard 48V DC Output |
| Management Architecture | Wi-Tek Cloud Management Platform / Mobile App / Web GUI |
| Switching Capacity | 40 Gbps Backplane Bandwidth |
| Form Factor & Mount | 19-Inch Heavy-Duty Steel Metal Chassis / Rackmount (Brackets Included) & Desktop |
