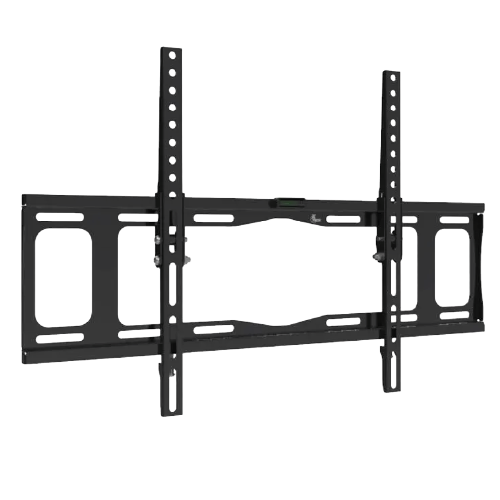

Low-Profile Tilting TV Wall Mount Bracket 32"–70" (0° to +10° Tilt, Heavy-Duty Solid Steel, VESA 600×400 Max, Up to 30kg / 66lbs, Slim 25mm Profile, Built-in Bubble Level)

Product Overview

The XTA-375 is a commercial-grade tilting flat-panel TV wall mount bracket manufactured by Xtech, designed for video surveillance operations centers (SOCs), CCTV monitoring stations, commercial conference rooms, digital signage installations, and residential command setups. Engineered to securely support LED, LCD, and plasma flat-panel displays from 32 inches up to 70 inches, this heavy-duty mount combines a slim, space-saving wall profile with dynamic vertical tilt adjustments to optimize viewing angles and eliminate overhead lighting reflections or sun glare.

Constructed from heavy-gauge solid cold-rolled steel with an electrostatically applied anti-scratch powder coating, the bracket supports displays weighing up to 30 kg (66 lbs). It features an ergonomic 0° to +10° smooth downward tilt mechanism, allowing elevated wall-mounted monitoring screens to be angled directly toward the operator's line of sight. With an ultra-slim 25 mm (approx. 1 inch) wall clearance profile, it keeps monitors close to the mounting surface while maintaining adequate airflow for device cooling and rear connector access. The mounting backplate includes an integrated bubble level for quick, level installation, while universal VESA patterns support configurations from 200×200 mm up to 600×400 mm.

Key System Features & Functionality

• Broad Display Compatibility (32"–70"): Accommodates flat and curved LED, LCD, and plasma display monitors ranging from 32" up to 70" diagonally.

• 0° to +10° Downward Tilt Adjustment: Provides smooth vertical tilt positioning to optimize line-of-sight ergonomics and reduce glare from room lighting or windows.

• Heavy-Duty 30 kg (66 lbs) Load Capacity: High-tensile structural steel construction delivers rigid, sag-free support for commercial surveillance screens.

• Universal VESA Pattern Versatility: Fully compliant with standard VESA mounting patterns: 200×200, 300×300, 400×200, 400×400, and up to 600×400 mm.

• Ultra-Slim 25mm (1") Low Profile: Mounts screens close to the wall for a flush, professional appearance in narrow control rooms and corridors.

• Integrated Bubble Level: Built-in leveling vial on the backplate ensures fast, accurate alignment on solid masonry or standard wood studs.

• Dual Vertical Safety Lock Mechanism: Security brackets feature bottom retainer stops to prevent vertical lift-off or accidental displacement.

• Open Architecture Wall Plate: Generous center cutout facilitates clean cable routing directly into wall boxes, conduits, or surface raceways.
