16-Channel 5M-N WizSense Hybrid Digital Video Recorder

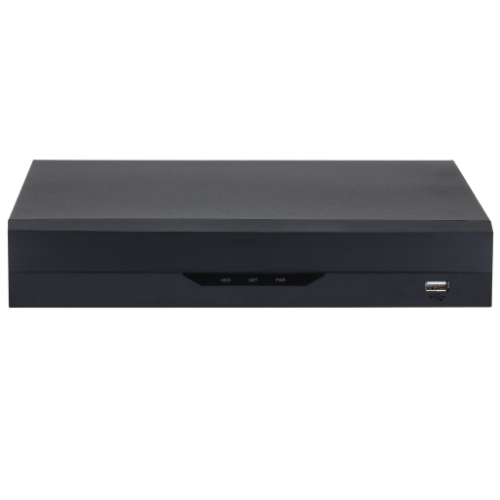

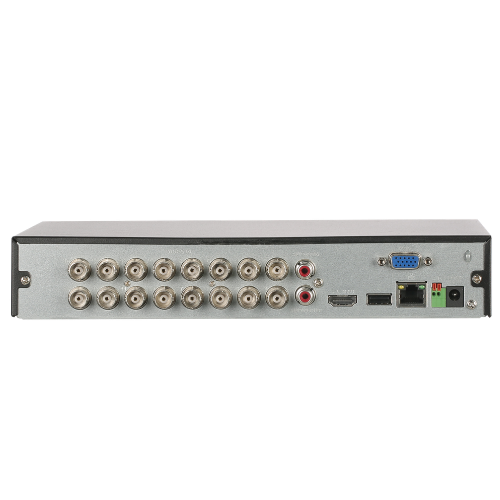

The XVR5116HS-I3 is a 16-channel Penta-brid 5M-N/1080P Compact 1U Digital Video Recorder (XVR). Designed for high-performance commercial and residential surveillance setups, it supports up to 16 analog BNC channels (HDCVI, AHD, TVI, CVBS) plus 8 additional IP camera channels (up to 24 channels total, up to 6MP per IP channel) with an incoming bandwidth of 128 Mbps.

Driven by deep-learning WizSense algorithms, the XVR5116HS-I3 features Perimeter Protection (up to 2 channels), Real-Time Face Recognition (up to 2 channels / 10 face databases with 20,000 images), and full-channel SMD Plus (Smart Motion Detection Plus) to accurately classify human and vehicle targets while reducing false alarms. Equipped with AI Coding, Smart H.265+ compression, 1 SATA HDD slot supporting up to 16 TB, RS-485 port for PTZ control, audio over coaxial cable (AoC), and simultaneous HDMI/VGA outputs, it offers advanced AI perimeter defense.

Key System Features & Functionality

• 16 + 8 Channel Hybrid Architecture: Connects 16 BNC analog channels plus 8 IP channels (up to 24 channels total, up to 6MP per IP camera).

• WizSense Deep-Learning AI Analytics: Supports 2-channel Perimeter Protection (Tripwire & Intrusion), 2-channel Face Recognition/Comparison, and 16-channel SMD Plus for human/vehicle classification.

• 5M-N / 4M-N High-Resolution Recording: Supports recording up to 5M-N (10 fps), 4M-N/1080P (15 fps), and 1080N/720P (25/30 fps).

• AI Coding & Smart H.265+: Full-channel AI coding optimizes bandwidth and storage consumption by over 50% compared to standard H.265 while maintaining detail on target subjects.

• Audio Over Coax (AoC) & RS-485 Interface: Supports coaxial audio transmission from AoC HDCVI cameras and includes an RS-485 port for legacy PTZ camera control.

• 16 TB SATA HDD Capacity: Includes 1 internal SATA port supporting a single 3.5" surveillance hard drive up to 16 TB.
